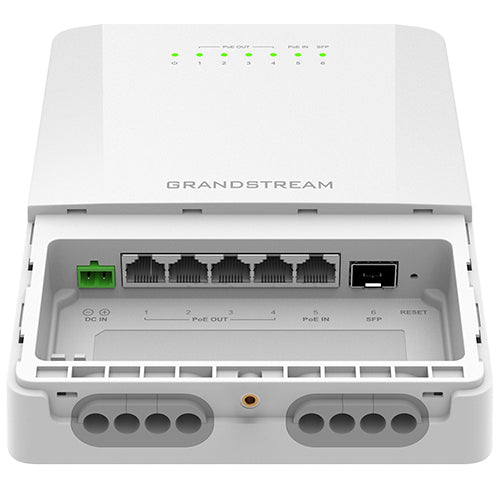

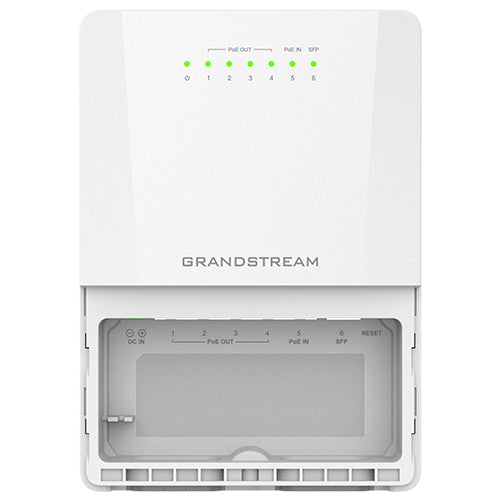

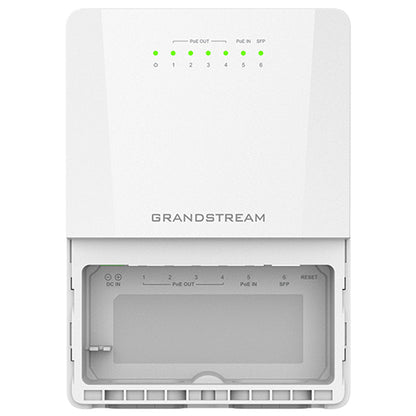

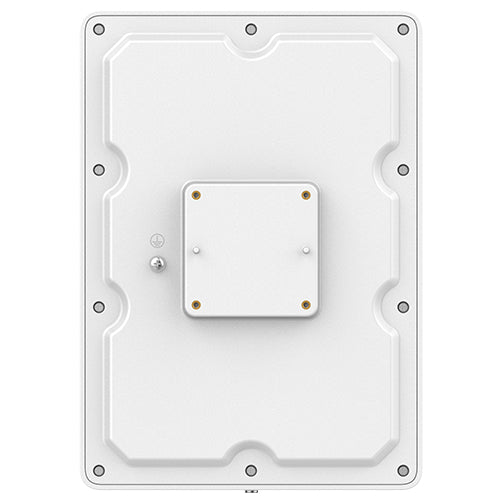

Grandstream Networks GWN7710R network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

Grandstream Networks GWN7710R, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Description

Grandstream Networks GWN7710R. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. DC input voltage: 12 - 57 V. Power over Ethernet (PoE)

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames	16000
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Packet buffer memory	1 MB
Forwarding rate	7.44 Mpps
Security
Loop protection	Yes
IGMP snooping	Yes
Design
Rack mounting	No
Product colour	White
LED indicators	Status
Certification	FCC, CE, RoHS
Performance
Fanless	Yes
Packet buffer memory	1 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
DC input voltage	12 - 57 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	24 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	48 W
Operational conditions
Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	5.91" (150 mm)
Depth	8.27" (210 mm)
Height	2.05" (52 mm)
Weight	26.5 oz (750 g)
Packaging content
User guide	Yes
Packaging data
Package width	11.3" (286 mm)
Package depth	18.3" (466 mm)
Package height	10.2" (258 mm)
Package weight	2.98 lbs (1.35 kg)
User guide	Yes
Certificates
Certification	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code	85176990
