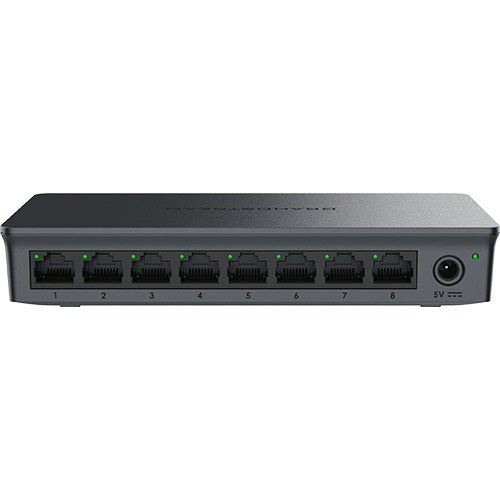

Grandstream Networks GWN7701 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Plastic, Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, 8× 10/100/1000Mbps RJ45 Ports, 16Gbps, 5VDC/0.6A, 2.7 W, 164 x 80 x 30mm

Key Features

• 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
• Auto MDI/MDIX crossover for all ports
• 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/
• GWN7701PA/GWN7702P only)
• Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present

Description

Specifications

Management features
Multicast support	Yes
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Performance
Auto-negotiation	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Data transmission
MAC address table	2 entries
Switching capacity	16 Gbit/s
Jumbo frames	9000
Jumbo frames support	Yes
Security
MAC address filtering	Yes
IGMP snooping	Yes
Multicast features
Multicast support	Yes
Design
Product colour	Black
LED indicators	Activity, Link
Housing material	Plastic
Certification	FCC, CE, RCM, IC, UKCA
Power
Power supply included	Yes
Power consumption (max)	2.7 W
Input current	0.6 A
DC input voltage	5 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	3.15" (80 mm)
Depth	6.46" (164 mm)
Height	1.18" (30 mm)
Weight	6 oz (170 g)
Packaging data
Package width	6.54" (166 mm)
Package depth	7.95" (202 mm)
Package height	2.13" (54 mm)
Package weight	13.4 oz (380 g)
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
