Grandstream Networks GWN7670WM wireless access point 3600 Mbit/s White Power over Ethernet (PoE)

2.4/5 GHz, Wi-Fi 7, Bluetooth 5.3, 1x WAN/LAN, PoE+

Key Features

• 3.6Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughput
• Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Description

The GWN7670WM is a new generation enterprise-grade 802.11be IN-Wall Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.

State-of-the-Art Wi-Fi 7 Connectivity
The GWN7670WM is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.

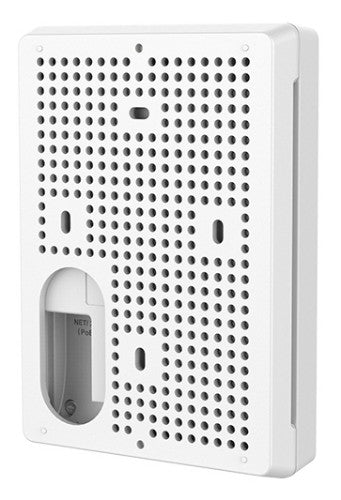

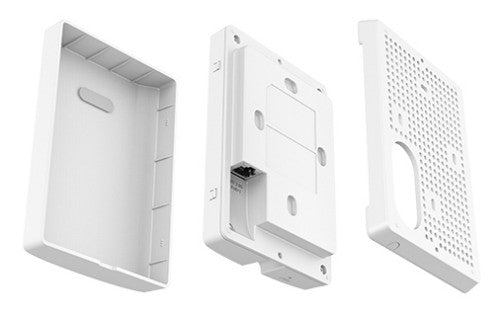

Designed for Seamless Wall Mounting
The GWN7670WM provides clean design and a paintable shell, allowing it to easily match any environment and integrate into any space.

Ideal for Environments with Medium User Density
The GWN7670WM provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.

Twice as Fast as Wi-Fi 6
Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity

Easy and Free Management
Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

Free Network Management Options
GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.

Specifications

Performance
Maximum data transfer rate	3600 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Web-based management	Yes
VLAN support	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
MIMO	Yes
Features
6 GHz	No
Maximum data transfer rate	3600 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Bluetooth	Yes
Bluetooth version	5.3
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	2882 Mbit/s
Bluetooth Low Energy (BLE)	Yes
Number of simultaneously connected devices (max)	256
Security
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2-Enterprise, WPA2-PSK, WPA3
Number of SSID supported	32
Management features
Web-based management	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	15.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Design
Reset button	Yes
Placement	In-wall
LED indicators	Yes
Product colour	White
Antenna
Antenna type	Internal
Antennas quantity	5
Antenna gain level (max)	4 dBi
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM
Weight & dimensions
Width	5.91" (150 mm)
Depth	1.34" (34.1 mm)
Height	4.17" (106 mm)
Weight	16.7 oz (473 g)
Package weight	21.2 oz (600 g)
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Package weight	21.2 oz (600 g)
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-30 - 60 °C
Logistics data
Quantity per pack	1 pc(s)
