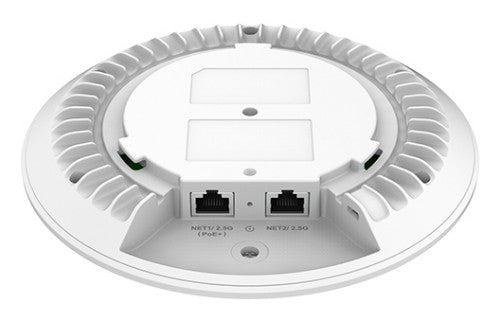

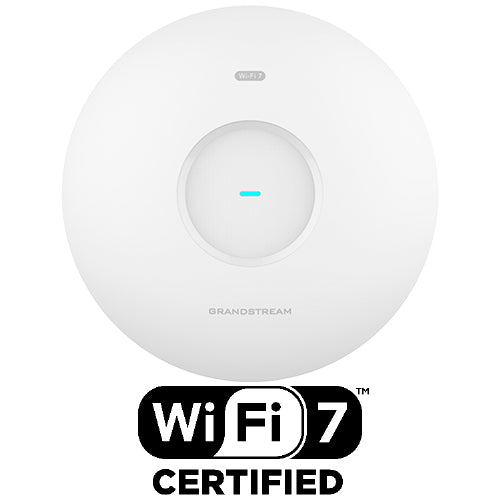

Grandstream Networks GWN7670 wireless access point 2882 Mbit/s White Power over Ethernet (PoE)

Wi-Fi 7, 2.4G/5G, 175 m, 2882 Mbit/s, 32 SSIDs, PoE+, Kensington, Bluetooth 5.3, 14.5 W, 2x2:2 MIMO, White, 185 x 185 x 44.5 mm, 527 g

Key Features

• 3.6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
• Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE+

Description

The GWN7670 is a new generation enterprise-grade 802.11be Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.

State-of-the-Art Wi-Fi 7 Connectivity
The GWN7670 is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.

Ideal for Environments with Medium User Density
The GWN7670 provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.

Twice as Fast as Wi-Fi 6
Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.

Easy and Free Management
Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.

Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.

Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.

GWN7670 Key Deployment Scenarios
The GWN7670 can be deployed in various scenarios including:
- Offices: Medium and large offices can utilize the GWN Series to create a mobile working environment for employees that doesn't sacrifice on performance.
- Commerical Shops: Commercial stores can use the GWN Series to create Wi-Fi environments for both guests and staff.
- Education: Within demanding education environments, the GWN Series can help both staff and students exceed with a rapid wireless connection.

Specifications

Performance
Maximum data transfer rate	2882 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Maximum indoor range	6889.8" (175 m)
MIMO	Yes
Features
6 GHz	No
Maximum data transfer rate	2882 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Maximum indoor range	6889.8" (175 m)
Bluetooth	Yes
Bluetooth version	5.3
MIMO	Yes
Maximum Tx power (2.4 GHz)	26 dBmW
Maximum Tx power (5 GHz)	26 dBmW
Security
Security algorithms	AES, SSID, TKIP, WEP, WPA, WPA2-PSK, WPA3
Number of SSID supported	32
Protocols
Supported network protocols	IPv4, IPv6
Management features
Cloud-managed	Yes
Power
Power consumption (max)	14.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Design
Reset button	Yes
Placement	Ceiling, Wall
LED indicators	Status
Housing material	Plastic
Product colour	White
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	5
Antenna gain level (max)	3.5 dBi
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RCM
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RCM
Weight & dimensions
Width	7.28" (185 mm)
Depth	7.28" (185 mm)
Height	1.75" (44.5 mm)
Weight	18.6 oz (527 g)
Package width	9" (228.5 mm)
Package depth	8.66" (220 mm)
Package height	3.11" (79 mm)
Package weight	30.9 oz (877 g)
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Package width	9" (228.5 mm)
Package depth	8.66" (220 mm)
Package height	3.11" (79 mm)
Package weight	30.9 oz (877 g)
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-30 - 60 °C
Logistics data
Quantity per pack	1 pc(s)
