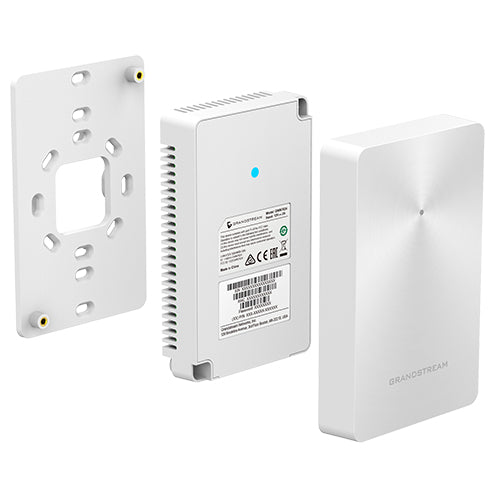

Grandstream Networks GWN7624 wireless access point 1733 Mbit/s White Power over Ethernet (PoE)

GWN In-Wall Wi-Fi Access Point

Key Features

• 2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
• Supports up to 200 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto detection of PoE or PoE+
• Embedded controller can manage up to 30 local GWN series APs
• GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller

Description

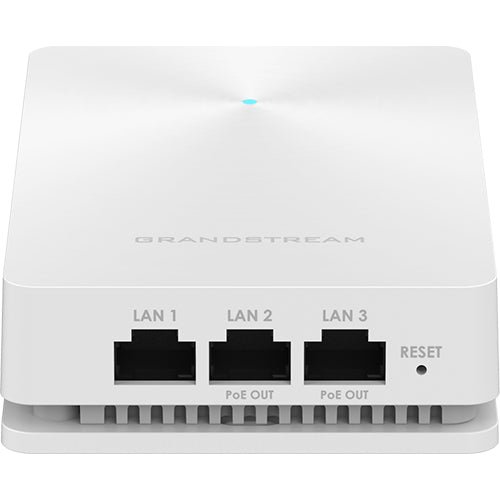

The GWN7624 is an in-wall Wi-Fi access point that includes three Gigabit network ports, 2 which provide PoE, to provide internet connections and power for devices such as IP phones, computers, TVs and more.

Specifications

Performance
Maximum data transfer rate	1733 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Number of users	200 user(s)
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Maximum indoor range	6889.8" (175 m)
MIMO type	Multi User MIMO
MIMO	Yes
Features
6 GHz	No
Maximum data transfer rate	1733 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Number of users	200 user(s)
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Maximum indoor range	6889.8" (175 m)
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	1733 Mbit/s
Security
Security algorithms	WEP, WPA, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
Power
Power consumption (max)	25 W
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
Product colour	White
Antenna
Antenna type	Internal
Antennas quantity	4
Weight & dimensions
Width	3.39" (86 mm)
Depth	1.52" (38.5 mm)
Height	5.31" (135 mm)
