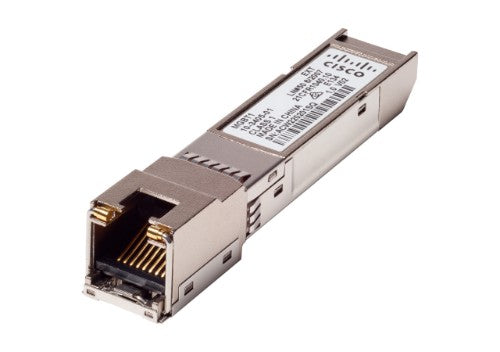

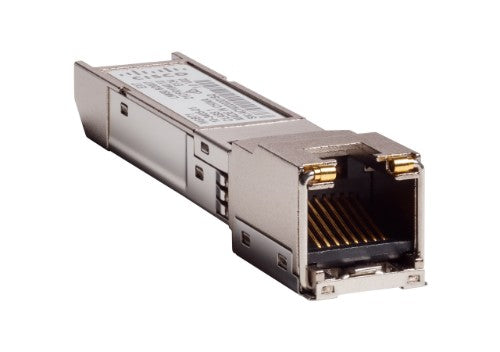

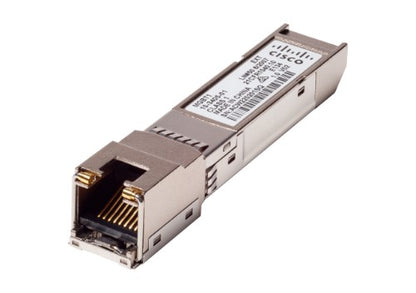

Cisco Gigabit Ethernet LH Mini-GBIC SFP Transceiver network media converter 1310 nm

MGBT1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-T Mini-GBIC (MGBT1)

Key Features

• ADDS FIBER: Optic connectivity to Cisco 100 to 500 Series switches
• CONNECTIVITY: 1000BASE-T SFP transceiver for Category 5 copper wire, supports up to 100 m
• DURABLE AND LOW POWER CONSUMPTION: Less power usage and heat-conducting increases the life of the product
• EASY TO USE: Easy installation, plug and play, fully hot-swapple
• PEACE OF MIND: 5-year warranty and one-year technical support

Description

The Cisco MGBT1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.

The MGBT1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances up to 100 meters.

Specifications

Network
Converter input interface	1000Base-T
Performance
Wavelength	1310 nm
Maximum transfer distance	3937" (100 m)
Design
Country of origin	China
Weight & dimensions
Width	2.6" (66 mm)
Depth	0.528" (13.4 mm)
Height	0.335" (8.5 mm)
Weight	0.705 oz (20 g)
Package width	3.2" (81.3 mm)
Package depth	5" (127 mm)
Package height	1" (25.4 mm)
Package weight	1.76 oz (50 g)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Packaging data
Package width	3.2" (81.3 mm)
Package depth	5" (127 mm)
Package height	1" (25.4 mm)
Package weight	1.76 oz (50 g)
Technical details
Harmonized System (HS) code	85176990
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Other features
Interface	RJ-45
