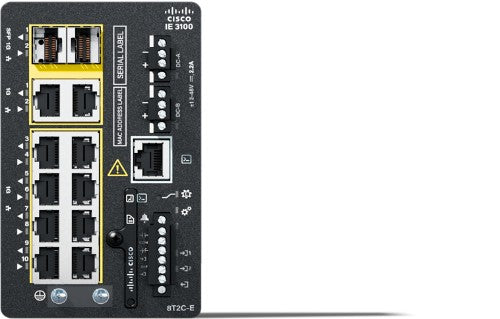

Cisco Catalyst IE3100 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Catalyst IE3100 w/8 PoE+ GE Copper and 2 GE Combo uplinks, NE

Description

Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.

These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Networking standards	IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Number of VLANs	256
Spanning tree protocol	Yes
Link aggregation	Yes
10G support	No
IGMP snooping	Yes
IGMP entries	512
Data transmission
MAC address table	8000 entries
Number of VLANs	256
Security
IGMP snooping	Yes
IGMP entries	512
DHCP features	DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	No
Product colour	Black
DIN rail mounting	Yes
Performance
Memory type	DRAM
Internal memory	4000 MB
Stackable	No
Power
Power supply included	Yes
DC input voltage	12 - 48 V
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Virtual LAN features
Number of VLANs	256
Weight & dimensions
Width	3" (76.2 mm)
Depth	5.08" (129 mm)
Height	5" (127 mm)
Weight	2.29 lbs (1.04 kg)
