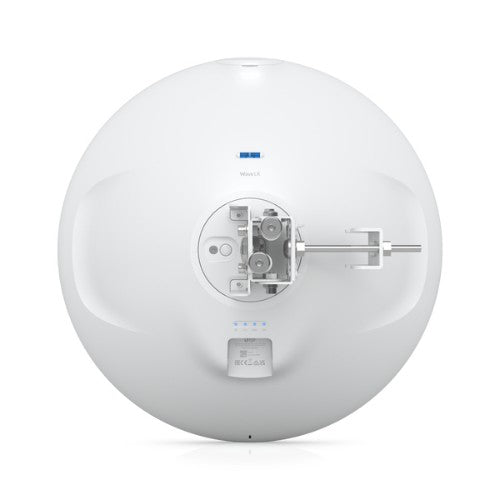

Ubiquiti WAVE-LR bridge/repeater White

60 GHz PtMP station, 8km max

Description

60 GHz PtMP station powered by Wave Technology.

Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.

Specifications

Data transmission
Maximum transfer distance	314960.6" (8000 m)
Antenna
Antenna gain level (max)	46 dBi
Wireless LAN features
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK
Wi-Fi	Yes
Wi-Fi band	Single-band (60 GHz)
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Security
Security algorithms	AES, WPA2-PSK
Management features
Web-based management	Yes
Features
Reset button	Yes
International Protection (IP) code	IPX6
Rack mounting	No
LED indicators	Yes
Internal memory	512 MB
Product colour	White
Mounting type	Pole
Power
Power consumption (max)	18 W
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, ICE
Compliance certificates	CE
Weight & dimensions
Weight	5.71 lbs (2.59 kg)
Width	16.7" (424.4 mm)
Depth	6.54" (166.2 mm)
Height	16.7" (424.4 mm)
Technical details
Quantity per pack	1 pc(s)
Sustainability compliance	Yes
Compliance certificates	CE
Sustainability
Sustainability compliance	Yes
Packaging data
Quantity per pack	1 pc(s)
