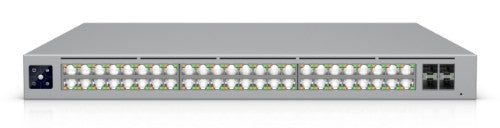

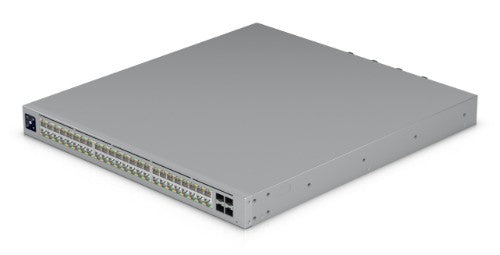

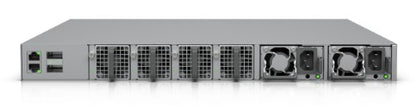

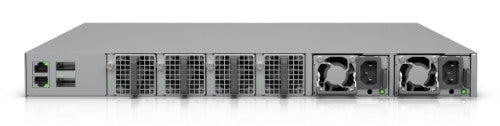

Ubiquiti UniFi ECS-48S-PoE (2150W) Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Gray

Enterprise Campus 48S PoE, 16x 10 GbE, 32x 2.5 GbE, 4x 25G SFP28, 2x 100G QSFP28, 1x GbE RJ45, PoE+++, 2150W

Description

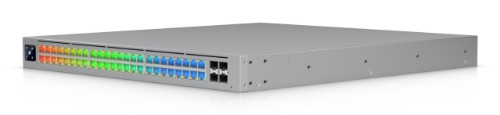

Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

Specifications

Management features
Switch layer	L2/L3
Switch type	Managed
Reset button	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Console port	RJ-45
Power connector	AC-in jack
QSFP28 ports quantity	2
SFP28 ports quantity	4
2.5G Ethernet (copper) ports quantity	32
10G Ethernet (copper) ports quantity	16
Network
Networking standards	IEEE 802.1x
Number of VLANs	1000
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Voice VLAN
IPv4 routes	512
IGMP snooping	Yes
Access Control List (ACL) IPv4 entries	256
Data transmission
MAC address table	32000 entries
Switching capacity	680 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	8 MB
Static route	Yes
Forwarding rate	506 Mpps
Throughput	340 Gbit/s
Number of VLANs	1000
Security
Loop protection	Yes
IGMP snooping	Yes
Access Control List (ACL) IPv4 entries	256
DHCP features	DHCP guarding, DHCP relay, DHCP snooping, DHCP server
Multicast features
Multicast support	Yes
Design

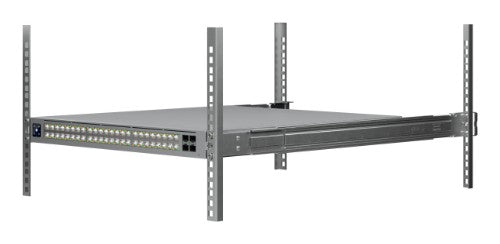

Rack mounting	Yes
Product colour	Gray
Reset button	Yes
Form factor	1U
Display type	LCM
LED indicators	System, Link, Status
Housing material	SGCC
Number of fans	4 fan(s)
Redundant fans support	Yes
Stacking	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	2400 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	2150 W
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE), PoE+++
Power over Ethernet (PoE+++) ports quantity	48
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	853 BTU/h
Virtual LAN features
Number of VLANs	1000
VLAN support	Yes
Virtual LAN features	Voice VLAN
Weight & dimensions
Width	17.4" (442 mm)
Depth	19.5" (496 mm)
Height	1.73" (44 mm)
Weight	20.9 lbs (9.5 kg)
Packaging content
Rack mount kit	Yes
Cables included	Power
Mounting brackets included	Yes
Packaging data
Mounting brackets included	Yes
Rack rails	Yes
Rack mount kit	Yes
Cables included	Power
IPv4 & IPv6 features
Access Control List (ACL) IPv4 entries	256
Performance
Packet buffer memory	8 MB
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Other features
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
