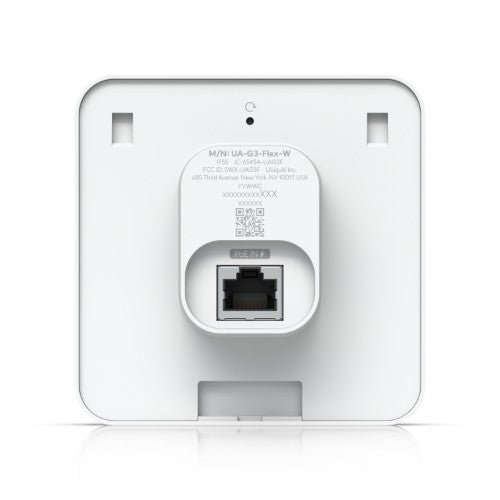

Ubiquiti Reader Flex Basic access control reader White

BLE 4.1, NFC, PoE, 1x 10/100 MbE RJ45 port, 44–57V DC, 5W, 12x Capacitive buttons, Polycarbonate, glass, aluminum alloy, IP55, white

Key Features

• Unlock with the keypad, NFC card, UniFi Identity mobile app, or Touch Pass
• Provides entry and exit greeting messages
• Push button performance (Usable with moisture or most gloves)
• IP55-rated weather resistance (-30 to 60°C)
• Connects to UniFi Access Hub via PoE

Description

Third-generation NFC card reader with a keypad and Apple Touch Pass support.

Specifications

Technical details
Type	Basic access control reader
Authentication type	Access chip/card, Password, Mobile app
Recommended usage	Outdoor
Ethernet LAN data rates	10,100 Mbit/s
Keypad number of keys	12
Keypad integrated	Yes
Keypad illumination	Yes
Fingerprint reader	No
Access code reader	No
Access chip/card reader	Yes
Product colour	White
Housing material	Aluminum, Glass, Polycarbonate (PC)
International Protection (IP) code	IP55
Near Field Communication (NFC)	Yes
LED indicators	Status
Bluetooth version	4.1
Bluetooth	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), UKCA
Display
Built-in display	No
Camera
Front camera	No
Performance
Built-in speaker(s)	Yes
Number of speakers	1
Speaker power	1 W
Ports & interfaces
Ethernet LAN data rates	10,100 Mbit/s
Near Field Communication (NFC)	Yes
Bluetooth version	4.1
Bluetooth	Yes
Cabling technology	10/100
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	1
DC voltage range	44 - 57 V
Power consumption (max)	5 W
Weight & dimensions
Width	3.31" (84 mm)
Weight	5.82 oz (165 g)
Height	3.31" (84 mm)
Depth	1.61" (40.8 mm)
Packaging content
Mounting bracket(s) included	Yes
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	5 - 90%
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	1
