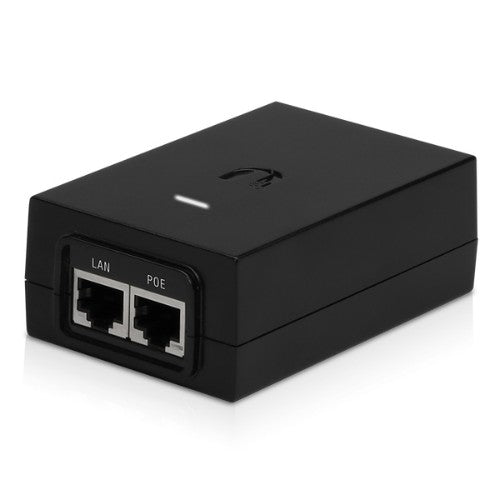

Ubiquiti POE-48-24W-G PoE adapter Gigabit Ethernet 48 V

48VDC @ 0.5A, RJ-45

Description

Device Protection

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Specifications

Network
Power over Ethernet (PoE)	Yes
Ethernet interface type	Gigabit Ethernet
Features
Surge protection	Yes
Product colour	Black
LED indicators	No
Certification	IEC 60950-1:2005+A1 UL60950‐1 EN55022:2010, EN55024:2010 FCC Class B
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
Power
Output current	0.5 A
Power over Ethernet (PoE) voltage	48 V
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	0.4 - 0.6 A
Certificates
Certification	IEC 60950-1:2005+A1 UL60950‐1 EN55022:2010, EN55024:2010 FCC Class B
Operational conditions
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 95%
Weight & dimensions
Weight	5.59 oz (158.5 g)
Width	2.36" (59.9 mm)
Depth	3.61" (91.8 mm)
Height	1.3" (33 mm)
Technical details
Harmonized System (HS) code	85044095
Logistics data
Harmonized System (HS) code	85044095
