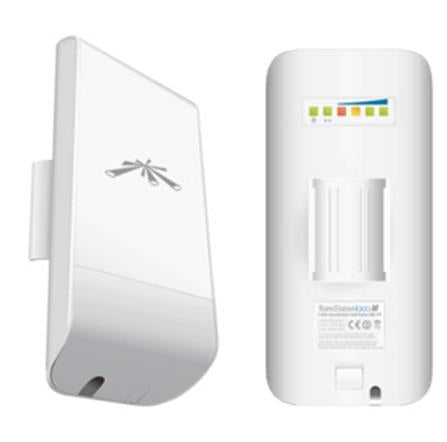

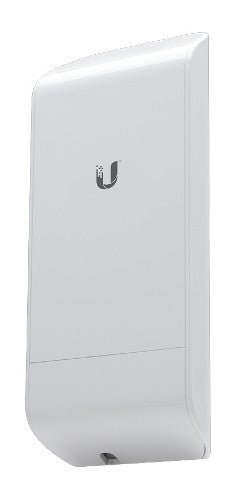

Ubiquiti LocoM5 150 Mbit/s

5GHz, 13dBi, Atheros MIPS 24KC, 400MHz, 32MB SDRAM, 8MB Flash, Fast Ethernet, White

Description

NanoStation Loco M
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.

airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.

Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.

World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.

Specifications

Data transmission
Maximum data transfer rate	150 Mbit/s
Supported data transfer rates	10/100/150 Mbit/s
Antenna
Antenna gain level (max)	13 dBi
Antenna design	MIMO
Wireless LAN features
Frequency band	5.170 - 5.875 GHz
Network
Networking standards	IEEE802.3, IEEE802.3u
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Management features
Data link protocols	TCP/IP, MIMO TDMA
Power
Power requirements	24V, 0.5A
Power over Ethernet (PoE)	Yes
Power consumption (typical)	5.5 W
Operational conditions
Operating temperature (T-T)	-30 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Certificates
Certification	FCC, IC, CE, RoHS
Weight & dimensions
Weight	6.35 oz (180 g)
Dimensions (WxDxH)	3.15 x 1.22 x 6.42" (80 x 31 x 163 mm)
Technical details
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
