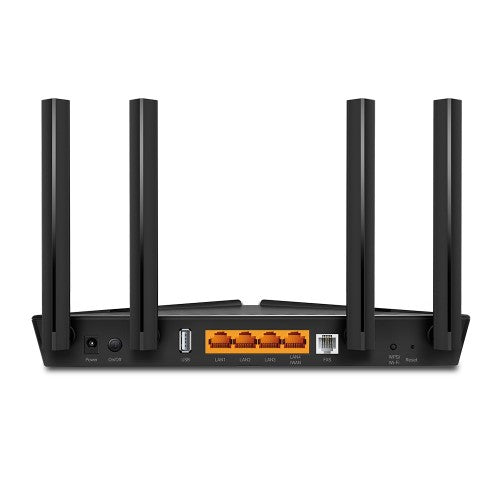

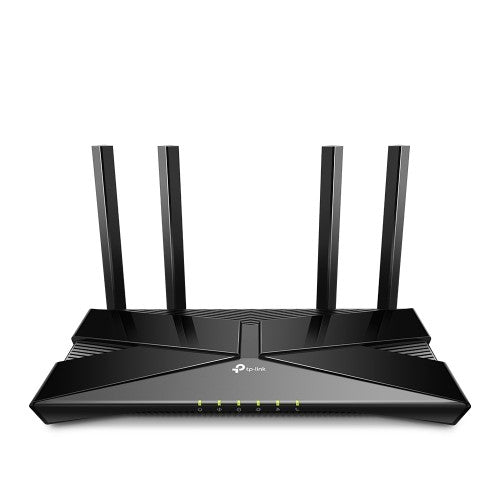

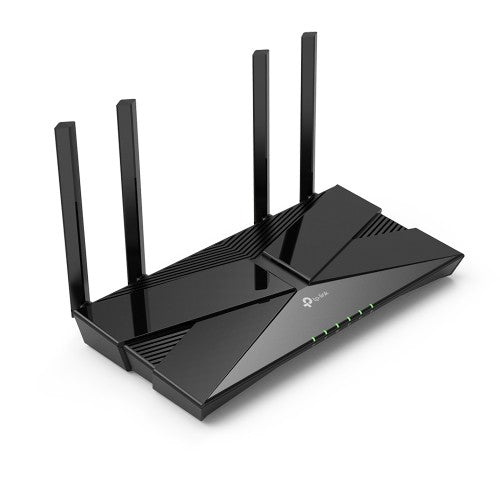

TP-Link XX230V wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

5 GHz (1201 Mbps) + 2.4 GHz (574 Mbps), 802.11 a/b/g/n/ac/ax, 1x GE WAN/LAN, 3x GE LAN, FXS, USB 2.0

Key Features

• Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with WiFi speeds up to 1.8 Gbps accross two bands
• Boosted Coverage: Four high-performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home
• More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices
• EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology
• Gigabit Wired Connections: 1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access
• VoIP Calls: Support multiple VoIP accounts and various call features to surpass traditional landlines
• Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
• Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experience
• Compatct Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking
• Easy Setup and Use: Set up your network in minutes with the powerful Aginet app
• Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols

Description

AX1800 Wireless Gigabit GPON HGU with VOIP. Econet Chipset with G.984.x, Class B+. SPEED: 574 Mbps at 2.4 GHz +1201 Mbps at 5 GHz. HT80. SPEC: 1 x GE WAN/LAN port + 3 x GE LAN ports, 1 x RJ11FXS Port, 1 x USB2.0. Port,1 x SC/APC GPON port, 4 x Fixed Antennas, QoS, IGMP, OMCI, TR069TR098/181, Easymesh, Aginet APP, Cloud support.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
DSL features
DSL WAN	No
Mobile network
SIM card slot	No
3G/4G USB modem compatibility	No
Protocols
DMZ support	Yes
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes
Management features
Universal Plug and Play (UPnP)	Yes
WPS push button	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Network
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
SSID-based VLAN assignment	Yes
Dynamic DNS (DDNS)	Yes
Ports & interfaces
USB port	Yes
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
SC/APC GPON ports quantity	1
Security
Security algorithms	WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise
DMZ support	Yes
Design
Product type	Tabletop router
On/off switch	Yes
Product colour	Black
Antenna
Antenna design	External
Antennas quantity	4
Power
Power source type	DC
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
