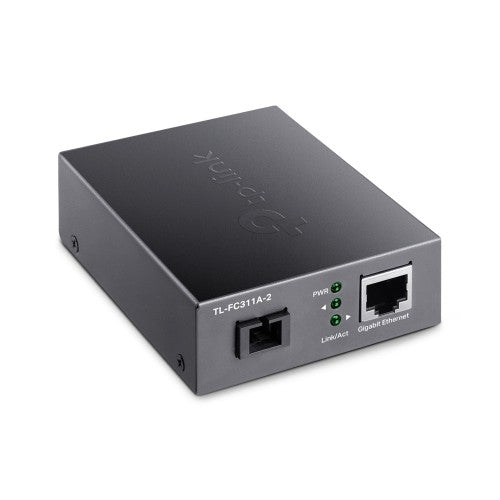

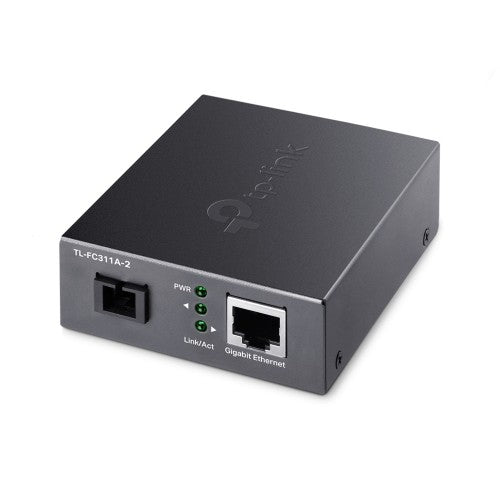

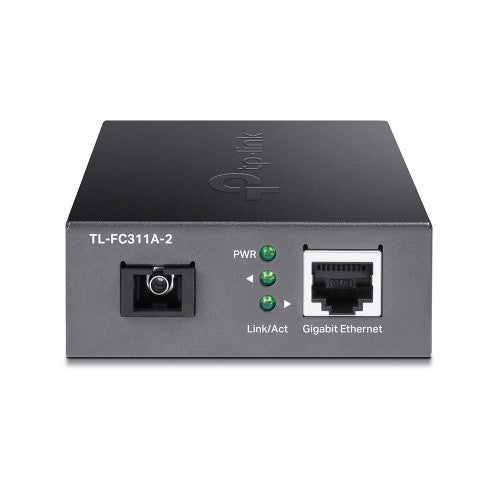

TP-Link TL-FC311A-2 network media converter 1000 Mbit/s Single-mode Black

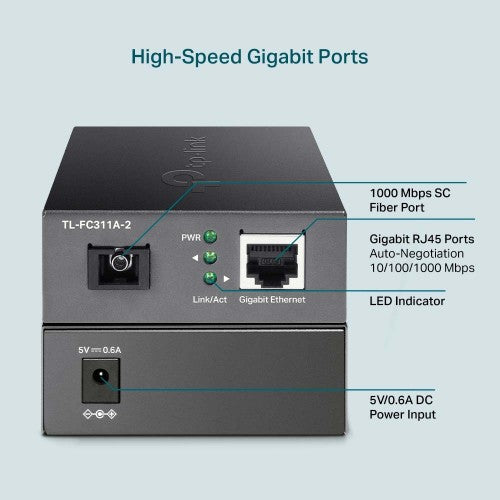

1× 10/100/1000 Mbps RJ45, 1× Gigabit SC Fiber Port, IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 94.5×73.0×27.0 mm

Key Features

• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

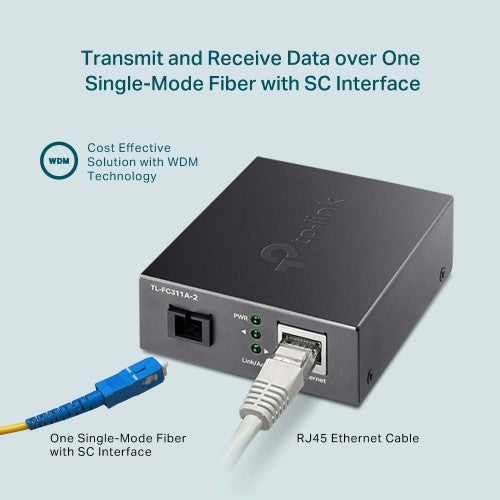

• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 2 km

Description

What This Product Does

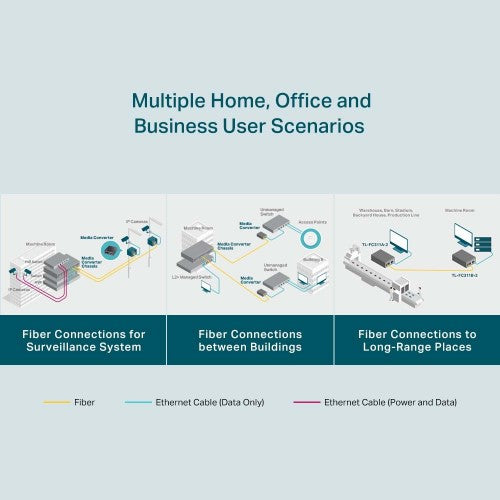

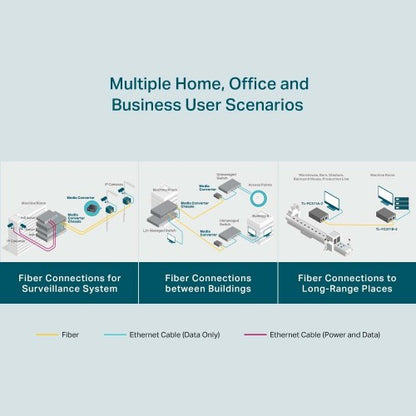

TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works

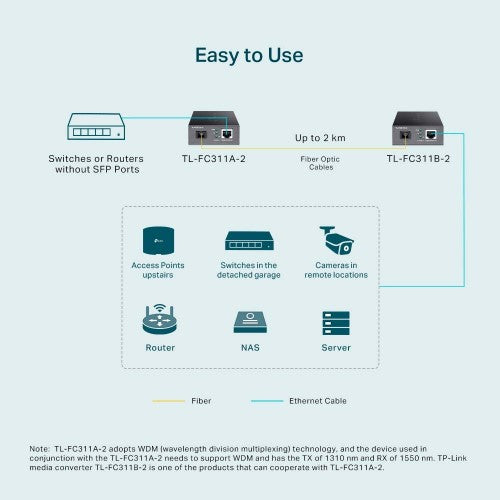

TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Specifications

Network
Maximum data transfer rate	1000 Mbit/s
Auto-negotiation	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full, Half
Data transfer rate	1000 Mbit/s
Auto MDI/MDI-X	Yes
Fiber optic connector	SC
Performance
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Single-mode
Fiber cable diameters supported (core/cladding)	9/125 µm
Wavelength-division multiplexing (WDM)	Yes
Auto-negotiation	Yes
Features
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC

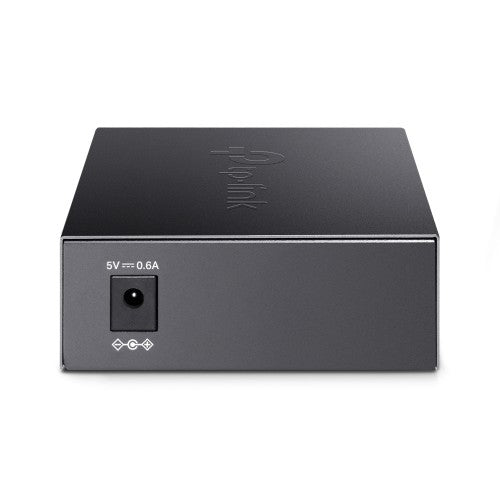

DC-in jack	Yes
Power
Output voltage	5 V
Output current	0.6 A
External power adapter	Yes
Weight & dimensions
Width	3.72" (94.5 mm)
Depth	2.87" (73 mm)
Height	1.06" (27 mm)
Package width	6.5" (165 mm)
Package depth	8.03" (204 mm)
Package height	2.56" (65 mm)
Package weight	12.3 oz (350 g)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Quick installation guide	Yes
AC adapter included	Yes
Packaging data
Package width	6.5" (165 mm)
Package depth	8.03" (204 mm)
Package height	2.56" (65 mm)
Package weight	12.3 oz (350 g)
Design
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Technical details
Data transfer rate	1000 Mbit/s
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
