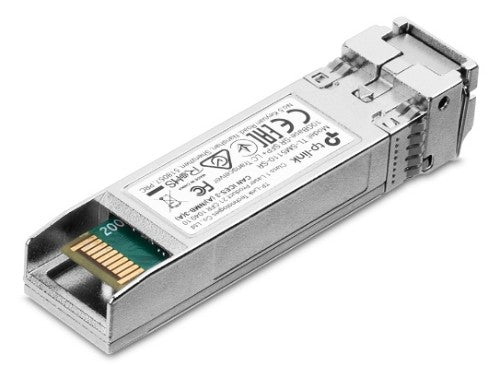

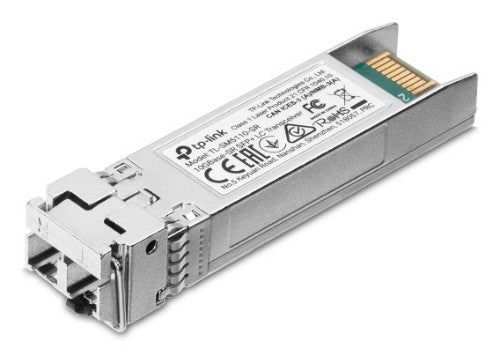

TP-Link SM6110-SR network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm

10GBase-SR SFP+ LC

Key Features

• Multi-mode SFP+ LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
• Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more

Description

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC (UPC)
Wavelength	850 nm
SFP transceiver standard	SR
Hot-swap	Yes
Features
Hot-swap	Yes
Certification	FCC, CE
Power
Input voltage	3.3 V
Certificates
Certification	FCC, CE
Operational conditions
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Network
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	LC (UPC)
Weight & dimensions
Width	2.41" (61.3 mm)
Depth	0.571" (14.5 mm)
Height	0.48" (12.2 mm)
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
