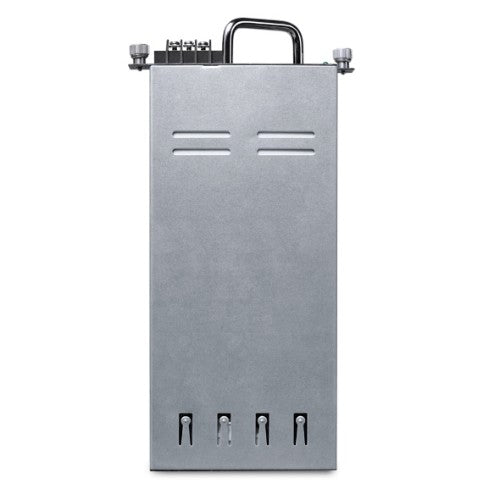

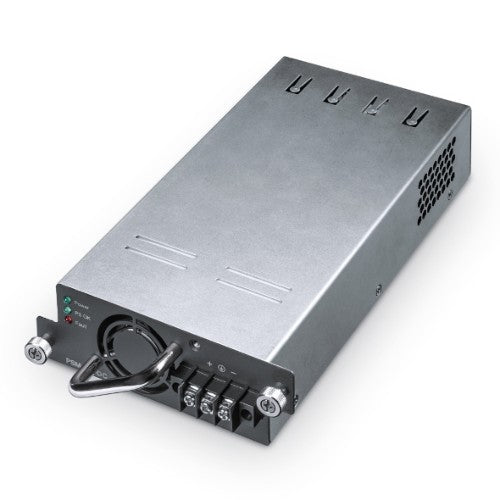

TP-Link PSM150-DC network switch component Power supply

150W, 12V/12.5A, 120x213x41.8 mm

Description

The TP-Link Power Supply Module PSM150-DC is an DC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with the maximum output power of 150 Watts. The power supply module is fully hot swappable, helping to ensure no system interruption during installation or replacement. PSM150-DC is applicable to GPON OLT products, such as DS-P7001-08 and DS-P7001-16.

Specifications

Features
Product type	Power supply
Internal	Yes
LED indicators	Yes
Compatibility	DS-P7001-08, DS-P7001-16
Product colour	Black, Metallic
Power protection features	Over current, Over voltage, Short circuit, Under voltage
Colour
Product colour	Black, Metallic
Technical details
Internal	Yes
LED indicators	Yes
Height	1.65" (41.8 mm)
Compatibility	DS-P7001-08, DS-P7001-16
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Total power	150 W
Maximum current	12.5 A
DC output voltage	12 V
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Performance
Compatibility	DS-P7001-08, DS-P7001-16
Weight & dimensions
Height	1.65" (41.8 mm)
Width	4.72" (120 mm)
Depth	8.39" (213 mm)
