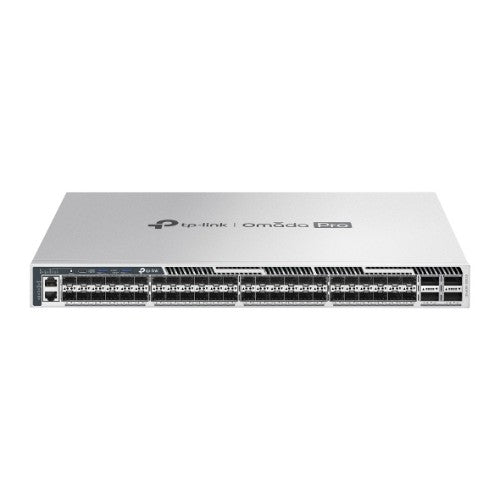

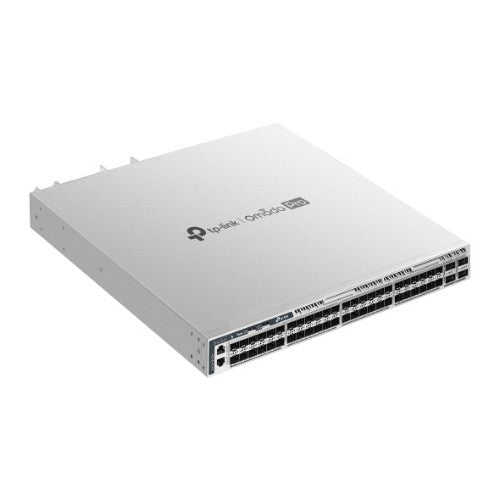

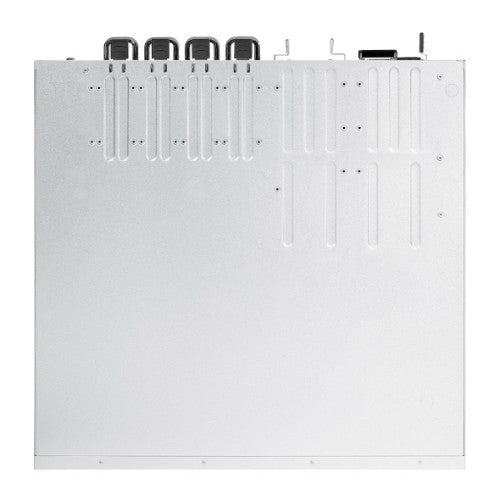

TP-Link Omada S7500-48XF4C network switch Managed

S7500-48XF4C - Omada Pro 48-Port 10G Stackable L3 Managed Aggregation Switch with 4× 100G Slots

Key Features

• 48× 10 Gbps SFP+ slots and 4× 100 Gbps QSFP28 slots
• Physical stacking for built-in redundancy and performance
• L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
• Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
• Highly available with two field-replaceable power supplies,* VRRP, ERPS, BFD
• Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
• Centralized cloud management via the web or the Omada app

Description

What This Product Does
Omada Pro S7500-48XF4C is a high-performance L3 managed switch tailored for the aggregation and core layer, featuring L3 routing, fast 100 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 48× 10 Gbps SFP+ slots, 4× 100 Gbps QSFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-48XF4C offers a dependable networking solution for enterprises, campus, and ISPs.

High-speed Connectivity and Powerful Stacking
48× 10 Gbps SFP+ slots and 4× 100 Gbps QSFP28 slots provide up to 1760 Gbps switching capacity per unit. Physical stacking of up to 12 units△ enhances network performance and redundancy.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.

Comprehensive Security Functions
Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks.

Highly Available
Two field-replaceable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.

Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.

Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.‡ Omada Pro’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface.

Apart from central management via the web or Omada app, S7500-48XF4C can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
SFP+ module slots quantity	48
Console port	RJ-45
USB 2.0 ports quantity	3
QSFP28 ports quantity	4
Network
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	1000,10000,40000,100000 Mbit/s
10G support	Yes
Data transmission
MAC address table	128000 entries
Switching capacity	1760 Gbit/s
Jumbo frames	9000
Jumbo frames support	Yes
Packet buffer memory	8 MB
Forwarding rate	610.1 Mpps
Security
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1/v2c/v3
Design
Rack mounting	Yes
Stackable	Yes
Power
Power supply included	Yes
AC input voltage	110 V
AC input frequency	60 Hz
Power consumption (max)	86.7 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	295.85 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.3" (440 mm)
Depth	15" (380 mm)
Height	1.73" (44 mm)
Packaging content
Cables included	AC, LAN (RJ-45)
Packaging data
Package type	Box
Cables included	AC, LAN (RJ-45)
Performance
Stackable	Yes
Packet buffer memory	8 MB
Other features
Ethernet LAN data rates	1000,10000,40000,100000 Mbit/s
