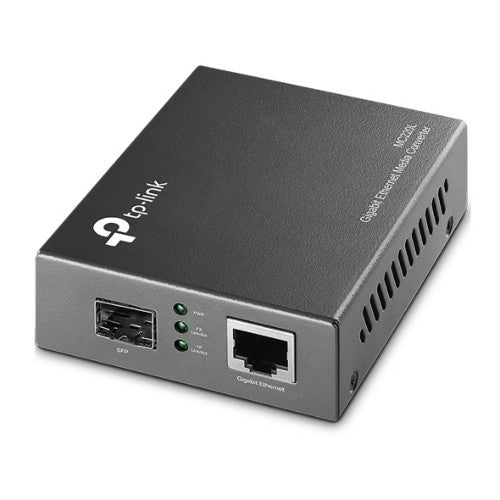

TP-Link Omada MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black

Media conv. 1000BASE-SX/LX/LH

Key Features

• 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• FX port supports hot-swappable

Description

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.

Specifications

Network
Maximum data transfer rate	1000 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6
Networking standards	IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Fiber optic connector	SFP
Performance
Maximum transfer distance	393700.8" (10000 m)
Fiber mode structure	Multi-mode, Single-mode
Features
Internal	No
LED indicators	Yes
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP
Power
Power consumption (max)	1.7 W
Weight & dimensions
Width	3.7" (94 mm)
Depth	2.87" (73 mm)
Height	1.06" (27 mm)
Package width	2.56" (65 mm)
Package depth	8.03" (204 mm)
Package height	2.56" (65 mm)
Package weight	15.5 oz (440 g)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging data
Package width	2.56" (65 mm)
Package depth	8.03" (204 mm)
Package height	2.56" (65 mm)
Package weight	15.5 oz (440 g)
Design
Internal	No
LED indicators	Yes
Product colour	Black
Certificates
Compliance certificates	RoHS
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85176990
