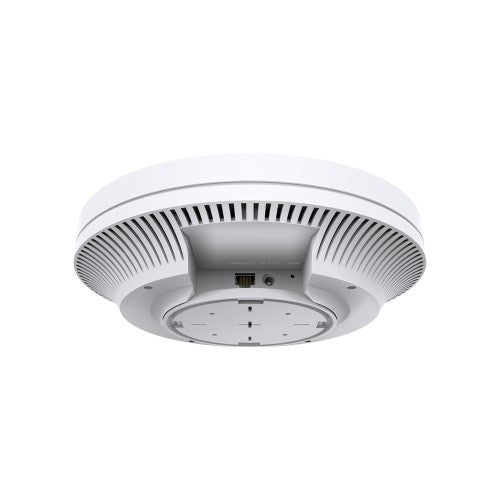

TP-Link Omada EAP620 HD wireless access point 1201 Mbit/s White Power over Ethernet (PoE)

IEEE 802.11ax/ac/n/g/b/a, 1G LAN, 2.4/5 GHz, PoE, 243x243x64 mm

Key Features

• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
• High-Density Connectivity: 4× increased capacity to connect more devices simultaneously
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

Description

High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

Specifications

Performance
Maximum data transfer rate	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	OFDMA
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
Flow control support	Yes
Automatic channel selection	Yes
Syslog	Yes
Number of users	1020 user(s)
Web-based management	Yes
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Firmware upgradeable	Yes
Certification	CE, FCC, RoHS
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	No
Maximum data transfer rate	1201 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Spread spectrum method	OFDMA
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
Flow control support	Yes
Automatic channel selection	Yes
Number of users	1020 user(s)
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Cabling technology	10/100/1000Base-T(X)
Transmitting power (FCC)	23 dBm
Transmitting power (CE)	20/23 dBm
Automatic channel scanning	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Fit AP mode features	Mesh networking
BeamForming	Yes
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
MAC address filtering	Yes
Access Control List (ACL)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Management features
Syslog	Yes
Web-based management	Yes
Firmware upgradeable	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Cabling technology	10/100/1000Base-T(X)
Power
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
DC voltage range	12 V
Design
Reset button	Yes
Placement	Ceiling, Wall
LED indicators	Yes
Product colour	White
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Certificates
Certification	CE, FCC, RoHS
Software
Automatic channel scanning	Yes
Access Control List (ACL)	Yes
Weight & dimensions
Width	6.3" (160 mm)
Depth	6.3" (160 mm)
Height	1.3" (33 mm)
Packaging data
Package type	Box
Quick start guide	Yes
Mounting kit	Yes
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Package type	Box
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Quantity per pack	1 pc(s)
