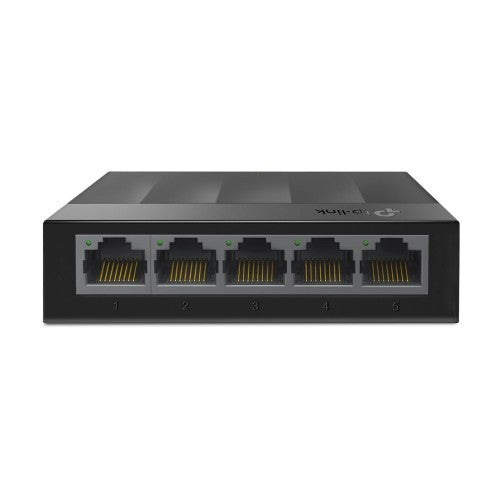

TP-Link LS1005G network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

LS1005G, IEEE 802.3i/802.3u/ 802.3ab/802.3x, 5x 1G RJ-45, 10 Gbps, 7.4 Mpps, 90x72x23 mm

Key Features

• 5× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
• Green Ethernet technology saves power
• IEEE 802.3X flow control provides reliable data transfer
• Plastic casing, desktop or wall-mounting design
• Plug and play, no configuration needed

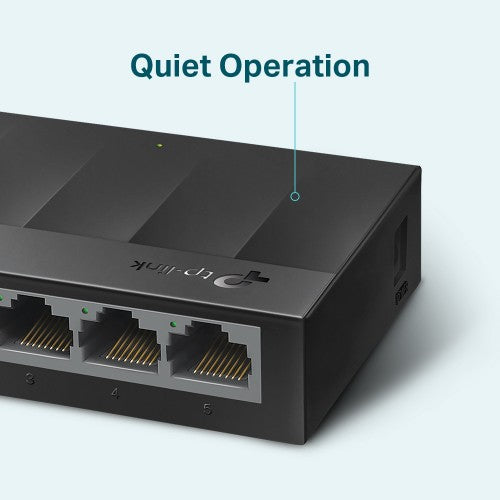

• Fanless design ensures quiet operation

Description

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

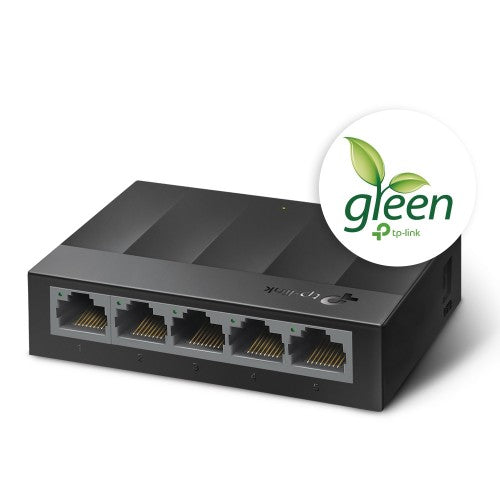

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

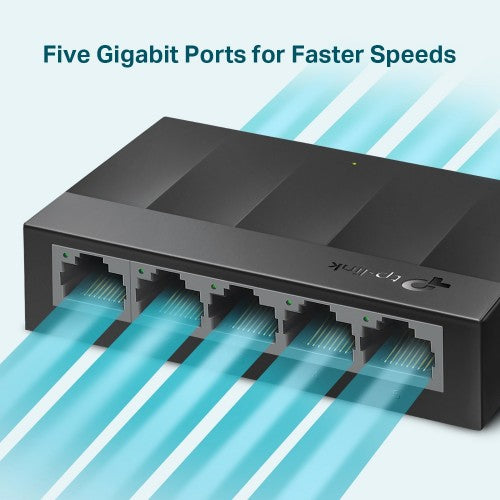

Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames	16000
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	1.5 MB
Forwarding rate	7.4 Mpps
Design
Rack mounting	No
Product colour	Black
Wall mountable	Yes
LED indicators	Yes
International Protection (IP) code	IP20, IP40
Housing material	Plastic
Certification	CE, FCC, RoHS
Power
Power supply included	Yes
Power consumption (max)	3.7 W
Input current	0.6 A
DC input voltage	5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	12.617 BTU/h
Weight & dimensions
Width	3.54" (90 mm)
Depth	2.83" (72 mm)
Height	0.906" (23 mm)
Packaging content
Quick start guide	Yes
Packaging data
Package type	Box
Quick start guide	Yes
Performance
Packet buffer memory	1.5 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, RoHS
Logistics data
Harmonized System (HS) code	85176990
