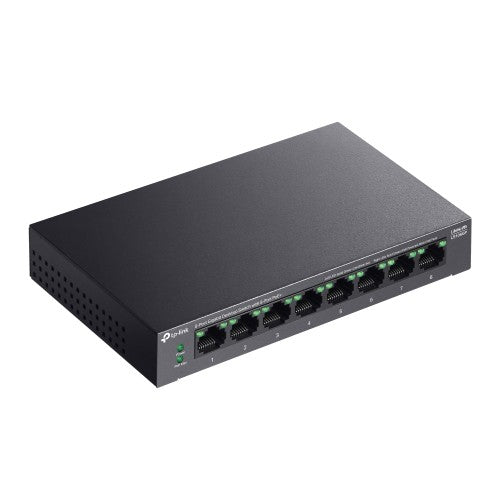

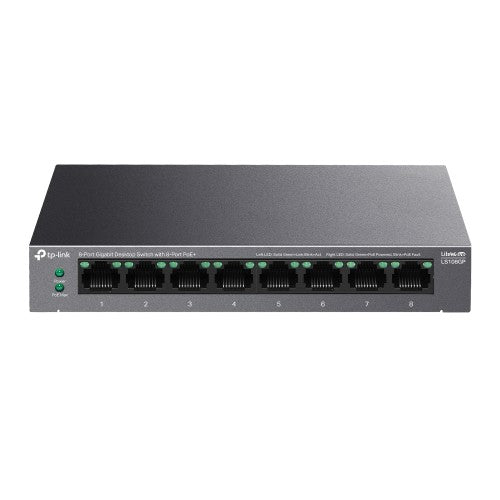

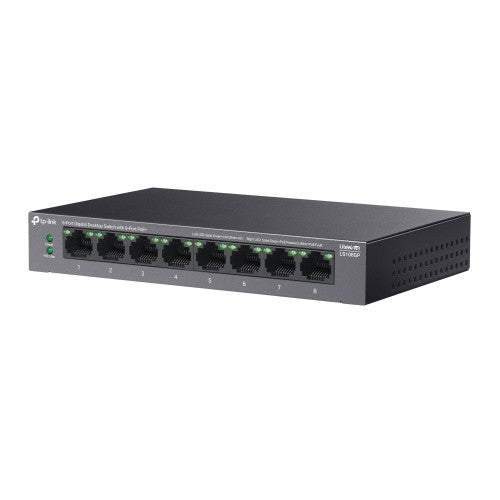

TP-Link LiteWave LS108GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

8× 10/100/1000Mbps RJ45 PoE+, 16 Gbps, 4K MAC, 16 KB Jumbo, 158×99×25 mm

Key Features

• Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity
• 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port
• Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
• Plug and Play: Simply plug and play for instant connectivity with no configuration required
• Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses

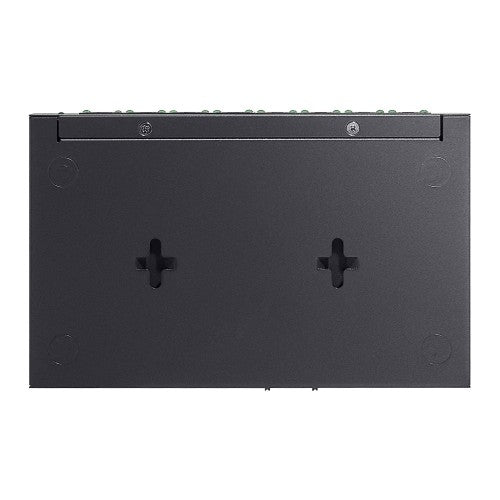

• Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments

Description

The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Jumbo frames	16000
Forwarding rate	11.9 Mpps
Design
Product colour	Black
LED indicators	Yes
Certification	CE, FCC, RoHS
Power
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (max)	71.61 W
Input current	1.31 A
DC input voltage	53.5 V
Power source	DC/PoE
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	62 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	243.47 BTU/h
Weight & dimensions
Width	6.22" (158 mm)
Depth	3.9" (99 mm)
Height	0.984" (25 mm)
Packaging content
User guide	Yes
Packaging data
Package type	Box
User guide	Yes
Performance
Auto-negotiation	Yes
Certificates
Certification	CE, FCC, RoHS
