TP-Link Archer Air E5 Network repeater White

2.4/5GHz, 574 + 2402 Mbps, 802.11ax, 17 W, 210 x 148 x 8 mm

Key Features

• Faster Dual-Band AX3000 WiFi: Up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time
• Ultra-Thin and Minimalist Design: Has a compact size of 210×148×8 mm and is even thinner than a wall outlet. Better integrated with modern home interiors
• Multiple Wall-Mounting Options:​​​​​​​ Designed to easily mount onto walls, coming with its own installation accessories. No need to purchase additional expensive mounts any more
• Smart Antennas: Use intelligent algorithms and different antenna arrays to ensure all-round stable signals even in duplex houses
• Smart Roaming: Easily create an EasyMesh network for whole home WiFi coverage
• Easy Setup and Use: Set up and manage your Wi-Fi through the TP-Link Tether app from your phone

Description

Ultra-Thin Design,
Extraordinary Performance
AX3000 Wi-Fi 6 Air Range Extender

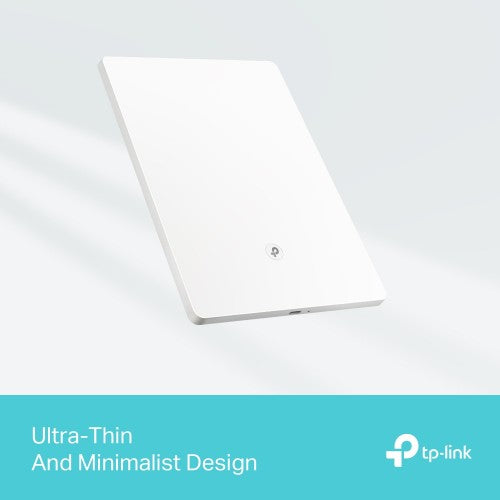

Ultra-Thin and Minimalist Design
Archer Air E5 has a compact size of 210×148×8 mm and is even thinner than a wall outlet.

The pure white shell, minimalist lines and rounded corners form an elegant appearance and make Archer Air E5 better integrated with modern home interiors.

The LED and WPS 2-in-1 button on the front and the Type-C power port on the bottom further simplify Archer Air E5’s look.

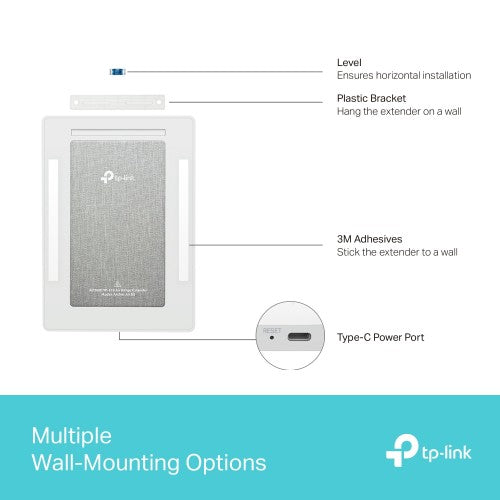

Flexible Installation, Ultra Convenience
Archer Air E5 is designed to easily mount onto walls and offers multiple installation methods. With two 3M adhesives on its back and a plastic bracket accessory, you can paste or mount it on a wall.** Its freer placement also saves electrical socket space.

Live in the Fast Lane with WiFi 6
Armed with AX3000 WiFi 6, Air E5 is built to deliver a huge boost in speed, capacity, and coverage.

Smart Antennas for All-Round Coverage
Archer Air E5’s built-in smart antennas use intelligent algorithms to auto-detect your devices’ locations and switch to the optimal antenna arrays, ensuring all-round stable signals even in duplex houses.

Boosted WiFi Signals Throughout Your Home
Armed with 4× powerful FEM and built-in smart antennas, Archer Air E5 boosts WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially in hard-to-reach areas.

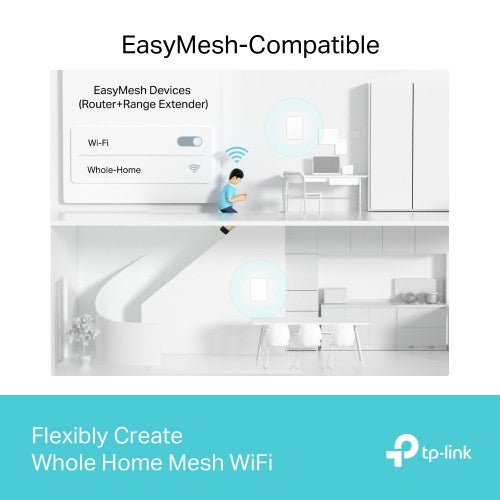

Flexibly Create Whole Home Mesh WiFi
Archer Air E5 is EasyMesh-compatible. If you have any WiFi dead zones at home, simply add another EasyMesh router to further form your whole home mesh WiFi. No more searching for a stable connection. For a better network experience, we recommend combining with Archer Air R5.

Advanced Features Made for Speed

Adaptive Path Selection
Keeps your network running at top speed by automatically choosing the fastest connection path to the router.

High Speed Mode
Helps you get the most out of your HD entertainment by using one dedicated band as a backhaul and another as an access point to maximize the overall performance of your wireless network.

Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS). Network management has never been easier.

Specifications

Performance
Type	Network repeater
Data transfer rate	2976 Mbit/s
Design
Mounting type	Wall
Reset button	Yes
Certification	FCC, RoHS
Product colour	White
Power
Output voltage	12 V
Output current	2 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	5.83" (148 mm)
Depth	0.315" (8 mm)
Height	8.27" (210 mm)
Packaging content
Manual	Yes
Packaging data
Package width	9.45" (240 mm)
Package depth	7.17" (182 mm)
Package height	2.83" (72 mm)
Package weight	28.2 oz (800 g)
Technical details
Type	Network repeater
Mounting type	Wall
Reset button	Yes
Data transfer rate	2976 Mbit/s
Certificates
Certification	FCC, RoHS
