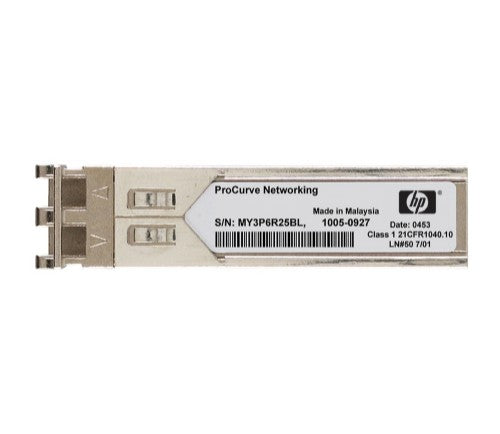

HPE X120 1G SFP LC BX 10-D network transceiver module Fiber optic 1000 Mbit/s 1490 nm

X120 1G SFP LC BX 10-D Transceiver, Refurbished

Description

A small form-factor pluggable (SFP) Gigabit LX-BX10-D transceiver that provides a full duplex Gigabit solution up to 10km on a single mode cable.

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3ah
Maximum transfer distance	393700.8" (10000 m)
Wavelength	1490 nm
Fiber ports quantity	1
Duplex system	Full
Single-mode fiber (SMF) supported	Yes
SFP transceiver standard	BX-D
Harmonized System (HS) code	85369010
Network
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3ah
Fiber ports quantity	1
Weight & dimensions
Width	2.17" (55.1 mm)
Depth	0.598" (15.2 mm)
Height	0.461" (11.7 mm)
Weight	0.705 oz (20 g)
Logistics data
Harmonized System (HS) code	85369010
