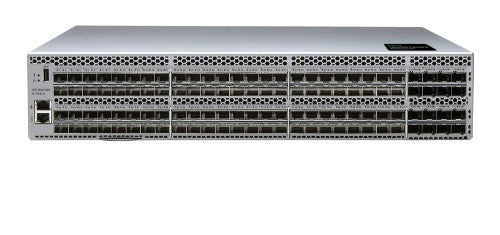

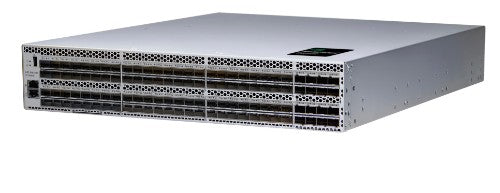

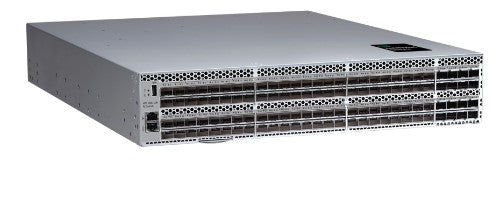

HPE SN6750B 64Gb 48/128 48-port 64Gb Short Wave SFP56 Integrated Fibre Channel Switch

HPE SN6750B 64Gb 48/128 48-port 64Gb Short Wave SFP56 Integrated Fibre Channel Switch, 2U

Reasons To Buy

Enhanced Security

With enhanced security and autonomous SAN technology, the HPE Storage Fibre Channel Switch B-series SN6750B takes the guesswork out of protecting and managing a network.
It enables a cyber-resilient network that protects against security threats, enables nonstop operations, and increases management automation.

Increase Performance for Application and Solid State Storage Architectures

The HPE Storage Fibre Channel Switch B-series SN6750B delivers increased performance through a combination of improved throughput and low latency across 64Gb links in hyper-scale virtualization, large cloud infrastructures, and growing flash-based storage environments.
Improved performance of NVMe storage with 50% lower switching latency than 32Gb. Latency for locally switched ports is 460 ns including forward error correction (FEC). ^[1]
With 96 SFP+ ports and 16 DD ports, it can scale up to 128 device ports for an aggregate throughput of 8.192Tbps. ^[1]

Ultra-dense and Highly Scalable

The HPE Storage Fibre Channel Switch B-series SN6750B scales up to 128 device ports in an efficiently designed 2U form factor, delivering increased port density and space utilization for simplified scalability.
Each of the 96 SFP+ ports and 16 DD ports supports 8, 10, 16, 32, and 64Gb FC speeds.
Provides flexibility to utilize high-speed 64Gb, 64Gb DD, 32Gb, 10Gb optics on demand to meet growing data center needs and provide backward compatibility to older infrastructures.

Description

HPE SN6750B 64Gb 48/128 48-port 64Gb Short Wave SFP56 Integrated Fibre Channel Switch. Form factor: 2U

Specifications

Protocols
Supported protocols	Fibre Channel
Design
Form factor	2U
Performance
Media types supported	Supports 64Gb, 32Gb SFP and 64Gb DD transceivers
Power
Redundant power supply (RPS) support	Yes
Other features
Weight (imperial)	41.71 lbs
Upgrade type	Activate additional ports using 24 port SFP and 32 port DD POD Kit upgrades
Technical features	Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans
Port speed rating	64Gb
Optional software	SANnav, All offerings include HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP)
Dimensions (W x D x H) (imperial)	17.32 x 3.41 x 24"
Supported protocols	Fibre Channel
Weight & dimensions
Width	17.3" (440 mm)
Depth	3.41" (86.7 mm)
Height	24" (609.6 mm)
Weight	41.7 lbs (18.9 kg)
System requirements
Media types supported	Supports 64Gb, 32Gb SFP and 64Gb DD transceivers
