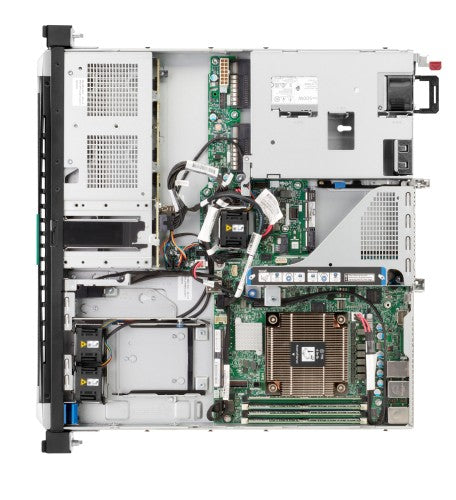

HPE ProLiant DL20 Gen11 E-2414 2.6GHz 4-core 1P 16GB-U 2LFF-NHP 290W PS Server

HPE ProLiant DL20 Gen11 E-2414 2.6GHz 4-core 1P 16GB-U 2LFF-NHP 290W PS Server, 2.6 GHz, E-2414, 16 GB, DDR5-SDRAM, 0 GB, Rack (1U)

Reasons To Buy

Right Balance of Performance, Flexibility, Reliability, and Manageability for Growing Business Needs

HPE ProLiant DL20 Gen11 server offers a wide choice of dual-core, quad-core, hexa-core or octa-core Intel Xeon E processors with up to 128 GB of DDR5 ECC memory to handle your workload demands.
Experience outstanding configuration flexibility with support for up to two large form factor (LFF) or six small form factor (SFF) drives, four DDR5 ECC UDIMMs, 290W, 500W, 800W or 1000W power supplies, and a more efficient deployment of options via HPE PCIe and OCP slots - now supporting PCIe 5.0.
The reliable HPE ProLiant DL20 Gen11 server combines a dense and compact form factor with redundant power supply capability, which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.
Along with an embedded 4x 1 GbE, you have a choice of HPE PCIe standup adapters that offer a choice of networking bandwidth (1 GbE to 10 GbE) and fabric, so you can adapt and grow to changing business needs.
HPE iLO 6 provides a more efficient and easier server management. It enables large-scale firmware deployment, improved GUI to simplify management with industry-standard APIs, and easy system debug access.

Compact, Secure, and Reliable Design for an Affordable Solution

HPE ProLiant DL20 Gen11 server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
HPE ProLiant DL20 Gen11 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.
Handle a range of light workloads to more demanding requirements with affordable configuration choices and a wide variety of Hewlett Packard Enterprise qualified options.

Security Innovations

Only Hewlett Packard Enterprise offers industry-standard servers, such as the HPE ProLiant DL20 Gen11server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle, starting with Silicon Root of Trust from HPE.
Millions of lines of firmware code run before the server operating system boots. With Runtime Firmware Verification, enabled by the optional HPE iLO Advanced Premium Security Edition, the server’s firmware is checked every 24 hours, verifying validity and credibility of essential system firmware.
Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised server.
Additional security options are available with Trusted Platform Module (TPM) to avoid unauthorized access to the server and store artifacts used to authenticate the server platforms, while the Intrusion Detection Kit logs and alerts when the server hood is removed for further protection.

Industry-leading Services and Ease of Deployment

HPE ProLiant DL20 Gen11 server comes standard with a complete set of services from HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Services simplify the stages of your IT journey. Advisory and Transformation Services professionals understand customer challenges and design an ideal solution. Professional Services enables rapid deployment of solutions.
Operational Services from HPE Services includes: HPE Complete Care, HPE Tech Care and project-based services, such as Integration and Performance services. Additional services can be added to customize your experience at any stage of your IT lifecycle.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Description

HPE ProLiant DL20 Gen11 E-2414 2.6GHz 4-core 1P 16GB-U 2LFF-NHP 290W PS Server. Processor family: Intel® Xeon®, Processor frequency: 2.6 GHz, Processor model: E-2414. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 1 x 16 GB. Total storage capacity: 0 GB, HDD interface: SATA. Ethernet LAN. Power supply: 290 W. Chassis type: Rack (1U)

Specifications

Processor
Processor frequency	2.6 GHz
Processor family	Intel® Xeon®
Processor model	E-2414
Processor cores	4
Number of processors installed	1
Processor cache type	Smart Cache
Processor cache	12 MB
Processor manufacturer	Intel
Memory
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory slots	4x DIMM
Memory layout (slots x size)	1 x 16 GB
Memory clock speed	4800 MHz
ECC	Yes
Storage
Total storage capacity	0 GB
HDD interface	SATA
Supported RAID controllers	Embedded Intel VROC SATA (formerly known as Intel RSTe)
RAID support	Yes
RAID levels	0, 1, 5, 10
Supported HDD sizes	3.5"
SSD interface	PCI Express 4.0
Optical drive type	No
Number of SSDs supported	2
Number of HDDs supported	2
Maximum storage capacity	40 TB
Hot-Plug support	No
Supported SSD sizes	3.5"
Graphics
Maximum graphics card memory	16 MB
On-board graphics card model	Matrox G200
On-board graphics card	Yes
Network
LAN controller	Broadcom BCM5719
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	4
DisplayPorts quantity	1
Expansion slots	Two maximum, for detailed descriptions refer to the QuickSpecs.
Design
Chassis type	Rack (1U)
Rack mounting	Yes
Optical drive type	No
Performance
Remote administration	iLO 6 ASIC
Compatible operating systems	Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Security features	Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs.
Management platform	HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management. Refer to the HPE iLO 6 User Guide
Software
Compatible operating systems	Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu
Power
Redundant power supply (RPS) support	No
Power supply type	1x HPE ProLiant DL20 Gen10 Plus 290W FIO Power Supply Kit
Number of main power supplies	1
Power supply input frequency	50 - 60 Hz
Power supply	290 W
Power supply input voltage	100 - 240 V
Weight & dimensions
Width	17.1" (434.6 mm)
Height	1.7" (43.2 mm)
Depth	15" (382.2 mm)
Other features
Security features	Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs.
Number of processors supported	1
Standard fans	3x High Performance Fans
Storage drive type	None ship standard, 2 LFF supported
