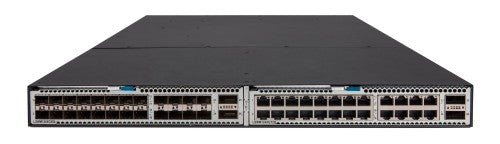

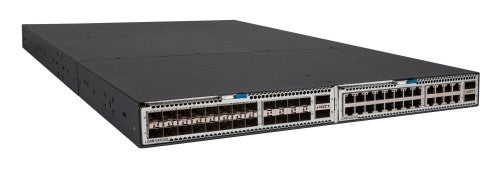

HPE Networking Comware Switch 48SFP+ 6QSFP28 5940

HPE Networking Comware Switch 48SFP+ 6QSFP28 5940, Managed, L2/L4, Rack mounting, 1U

Reasons To Buy

High-Performance Data Center Switching

The HPE FlexFabric 5940 Switch Series delivers up to 2.56 Tbps switching capacity for the most demanding data center applications.
It supports up to 1904 MPPS throughput for data-intensive environments.
Low latency, under 1μs for 40GbE, gives your network increased throughput.
VXLAN support for network virtualization and overlay solutions for improved flexibility. Includes Open vSwitch Database (OVSDB) for dynamic VXLAN tunnel management.

High-Density, Advanced, Data Center Switches with HPE FlexFabric Network Analytics

The HPE FlexFabric 5940 Switch Series enables customers to scale their server-edge 10/40/100GbE ToR deployments with high-density 48 x 10GbE (SFP or BASE-T) with 6 x 40GbE ports, 48 x 10GbE (SFP or BASE-T) with 6 x 100GbE ports, and 32 x 40GbE ports, delivered in a 1RU design.
The HPE FlexFabric 5940 Switch Series is also available with a 2-slot modular version delivering 2 40GbE ports and a 4-slot modular version with 4 40GbE ports.
The HPE 5940 Switch Series includes HPE FlexFabric Network Analytics which in conjunction with the HPE IMC Virtual Application Networking Fabric Manager delivers real time visibility of microburst network congestion which negatively impacts overall network operations and performance.

Business Agility and Resilience with Comware 7

The HPE FlexFabric 5940 Switch Series delivers Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) <50 msec convergence time enabling faster application response time.
The In Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.

Simplicity and Lower TCO

HPE FlexFabric 5940 Switch Series simplifies switch management by up to 88% with 9-unit Intelligent Resilient Fabric (IRF).
No hidden costs with simple one license per switch for all OS features.
All switch ports are active and ready to use without need for activation licenses.

Description

HPE Networking Comware Switch 48SFP+ 6QSFP28 5940. Switch type: Managed, Switch layer: L2/L4. USB 2.0 ports quantity: 2, Console port: RJ-45. MAC address table: 288000 entries, Switching capacity: 2160 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u. DC input voltage: 40 - 60 V. Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L2/L4
Switch type	Managed
Traffic shaping	Yes
Traffic classification	Yes
ARP inspection	Yes
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	48
QSFP+ module slots quantity	6
Console port	RJ-45
Gigabit Ethernet (copper) ports quantity	1
USB 2.0 ports quantity	2
Fiber optic connector	SFP+
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
10G support	Yes
Optical fiber
Fiber ethernet cabling technology	10GBASE-R
Fiber optic connector	SFP+
Data transmission
MAC address table	288000 entries
Switching capacity	2160 Gbit/s
Throughput	1607 Mpps
Latency (10 Gbps)	1 µs
Packet buffer memory	12.2 MB
Multicast features
Multicast support	Yes
Protocols
Management protocols	IMC
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Performance
Physical stacking (units)	9
Internal memory	4096 MB
Flash memory	1024 MB
Stackable	Yes
Packet buffer memory	12.2 MB
Harmonized System (HS) code	85176990
Power
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	196 W
Power consumption (max)	196 W
Input voltage	-40 - -75 V
DC input voltage	40 - 60 V
Power consumption note	196 W (maximum)
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Latency	10 Gbps Latency: < 1 μs
Performance management	IMC - Intelligent Management Center Command-line interface Out-of-band management SNMP manager Telnet FTP
Memory and processor	1 GB flash Packet buffer size: 16 MB 4 GB SDRAM
Weight (imperial)	24.25 lbs
Non-operating relative humidity (non-condensing)	10 - 90%
I/O ports	(48) fixed 1000/10000 SFP+ ports (6) QSFP28 100GbE ports
Dimensions (W x D x H) (imperial)	17.32 x 18.11 x 1.72"
Warranty period	1 year(s)
Input voltage	-40 - -75 V
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	887 BTU/h
Weight & dimensions
Width	17.3" (440 mm)
Depth	18.1" (460 mm)
Height	1.72" (43.6 mm)
Weight	24.3 lbs (11 kg)
Packaging content
User guide	Yes
Quick start guide	Yes
Manual	Yes
Technical details
Warranty period	1 year(s)
Packaging data
User guide	Yes
Quick start guide	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85176990
