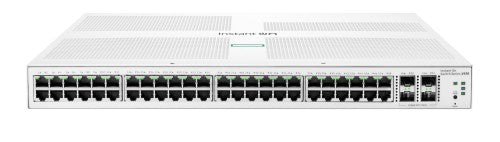

HPE Aruba Networking Networking Instant On Switch 48p Gigabit 4p SFP+ 1930

HPE Aruba Networking Networking Instant On Switch 48p Gigabit 4p SFP+ 1930, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), 1U

Key Features

• Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity
• Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility
• 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity
• Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely
• Option to manage your switches through local web GUI
• Limited Lifetime Warranty

Reasons To Buy

Simplify Network Deployment and Management for Small Organizations

The HPE Networking Instant On Switch 1930 series features easy-to-use, out-of-the-box, plug-and-play deployment.
The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8 G-, 24 G-, and 48 G-ports with and without class 4 PoE (i.e. PoE+).
The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
The HPE Networking Instant On Switch 1930 series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Keep Your Business Protected with Integrated Security Features

The HPE Networking Instant On Switch 1930 series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Deliver High Perfomance

The HPE Networking Instant On Switch 1930 series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
The 24- and 48-port models include 1 G/10 G SFP+ ports for reliable fiber connectivity and other connections across longer distances.

Description

HPE Aruba Networking Networking Instant On Switch 48p Gigabit 4p SFP+ 1930. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. Switching capacity: 176 Gbit/s. Power over Ethernet (PoE). Form factor: 1U

Specifications

Management features
Switch layer	L2/L3/L4
Switch type	Managed
ARP inspection	Yes
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Copper ethernet cabling technology	1000BASE-T
Network
Full duplex	Yes
Active link detection	Yes
Number of VLANs	4093
Copper ethernet cabling technology	1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Routing entries	32
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Auto-sensing	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Switching capacity	176 Gbit/s
Jumbo frames	9216
Throughput	130.95 Mpps
Latency (10-100 Mbps)	4.5 µs
Latency (1 Gbps)	2.2 µs
Latency (10 Gbps)	1.2 µs
Jumbo frames support	Yes
Packet buffer memory	1.5 MB
Number of VLANs	4093
Security
Loop protection	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client, DHCP snooping
Multicast features
Multicast support	Yes
Design
Product colour	White
Form factor	1U
Performance
Processor frequency	800 MHz
Memory type	SDRAM / Flash
Internal memory	512 MB
Flash memory	256 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Fanless	Yes
Packet buffer memory	1.5 MB
Power
AC input voltage	200 - 240 V
Power consumption (max)	36.9 W
Input current	0.2 A
Power consumption note	36.9W maximum, 16.8W idle
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Other features
Performance management	Instant On Portal, Web browser, SNMP Manager
Memory and processor	ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
Weight (imperial)	6.91 lbs
I/O ports	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T); Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports
Dimensions (W x D x H) (imperial)	1.73 x 17.42 x 11.12"
Ethernet LAN data rates	10,1000,100 Mbit/s
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Virtual LAN features
Number of VLANs	4093
VLAN support	Yes
Weight & dimensions
Width	1.73" (43.9 mm)
Depth	17.4" (442.5 mm)
Height	11.1" (282.4 mm)
Weight	6.9 lbs (3.13 kg)
