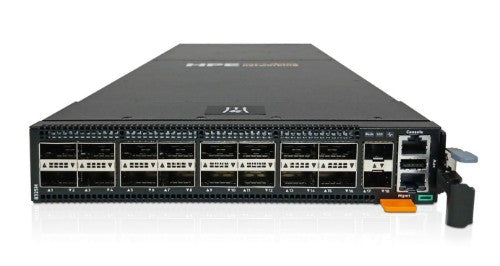

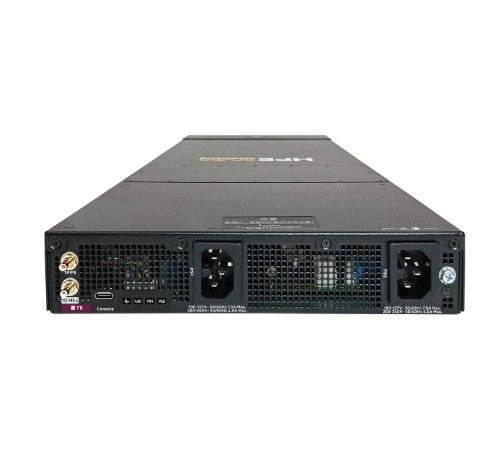

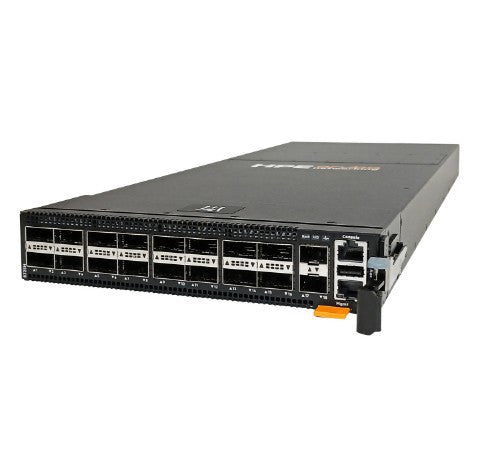

HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back‑to‑Front 4xFan 2xPSU Managed L3 1U

HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back‑to‑Front 4xFan 2xPSU, Managed, L3, Rack mounting, 1U

Description

HPE Aruba Networking CX 8325H 16p QSFP28 40G/100G Back‑to‑Front 4xFan 2xPSU. Switch type: Managed, Switch layer: L3. Switching capacity: 4000 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	2
QSFP28 ports quantity	16
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4040
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
10G support	Yes
Virtual LAN features	Private VLAN
IGMP snooping	Yes
Data transmission
Switching capacity	4000 Gbit/s
Throughput	2000 Mpps
Jumbo frames support	Yes
Packet buffer memory	32 MB
Number of VLANs	4040
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v2c, SNMP v3
Routing protocols	BGP, BGP4, OSPF, VRRP
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Airflow direction	Back-to-front airflow
Number of fans	4 fan(s)
Redundant fans support	Yes
Performance
Internal memory	32768 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	32 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (max)	500 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Heat dissipation	1705 BTU/h
Virtual LAN features
Number of VLANs	4040
VLAN support	Yes
Virtual LAN features	Private VLAN
Other features
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
