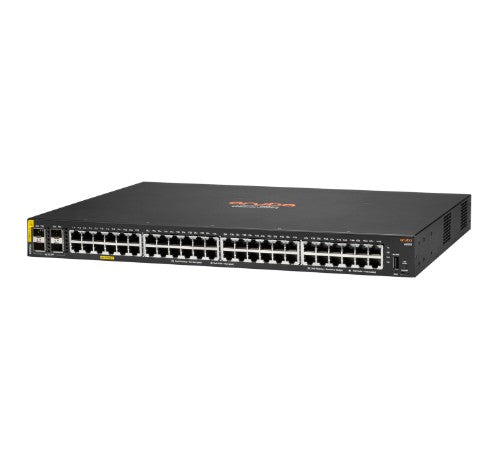

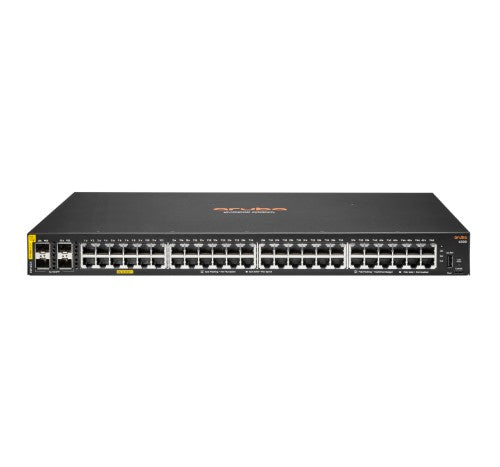

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: USB. MAC address table: 8192 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	USB
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
IPv6 FIB entries	128
IPv4 FIB entries	256
Data transmission
MAC address table	8192 entries
Switching capacity	104 Gbit/s
Throughput	77.3 Mpps
Latency (1 Gbps)	1.9 µs
Jumbo frames support	Yes
Packet buffer memory	12.38 MB
Security
Authentication	MAC-based authentication
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Protocols
IPv6 FIB entries	128
IPv4 FIB entries	256
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Design
Rack mounting	Yes
Stackable	No
Form factor	1U
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	8192 MB
Flash memory	16384 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Stackable	No
Packet buffer memory	12.38 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	370 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.4" (442 mm)
Depth	12" (305 mm)
Height	1.73" (44 mm)
Weight	11 lbs (5 kg)
IPv4 & IPv6 features
IPv6 FIB entries	128
IPv4 FIB entries	256
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
