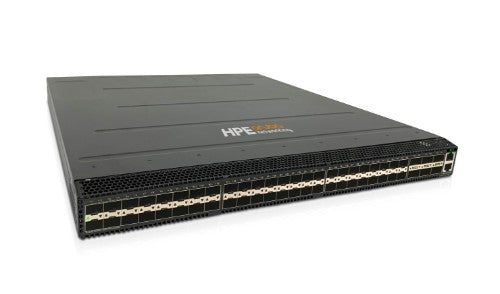

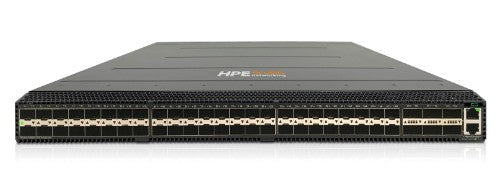

HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl

HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl, Managed, L3, Rack mounting, 1U

Reasons To Buy

Improves network bandwidth and performance

The HPE Aruba Networking CX 10000 Switch Series offers a unique blend of performance and scale for distributing advanced networking and security services where it is impractical and costly to force traffic back and forth across the network to a centralized policy enforcement point.
Simplify application of services at the services network access layer edge.
All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future. CX 10000 models provide 3.2 Tbps for bidirectional switching and 2000 Mpps for forwarding. CX 10040 models offer 8 Tbps of switching capacity, 1.6 Tbps of L4 stateful inspection.

Limit security appliance sprawl and cost

The CX 10000 series improves network bandwidth and performance by not having to trombone local traffic to a centralized chokepoint, helping to improve security posture while limiting appliance sprawl complexity and cost.
The CX 10000 series provides a compelling architectural alternative that distributes these advanced services to the data center edge, with unified network and security automation and policy management.

Extend zero trust and microsegmentation

The HPE Aruba Networking CX 10000 Switch Series allows operators to extend industry-standard leaf-spine networking with 1.6T of distributed micro-segmentation, east-west firewalling, NAT, encryption and telemetry services delivered inline across every port closer to critical enterprise applications.
Organizations with dedicated SecOps teams can leverage Pensando policy and services manager (PSM) based on specific security roles and responsibilities for increased scalability and fault tolerance.
Extends zero trust segmentation deeper into the data center for any type of host.
Optimizes network traffic flows, bandwidth, and performance, which reduces operational complexity associated with service switching.
The switch series allow operators to extend industry-standard leaf-spine networking with distributed stateful segmentation, east–west firewalling, NAT, encryption, and telemetry services — all delivered inline, all the time, on every access port, closer to where critical enterprise applications run.

Simplify operations

The CX 10000 series is integrated with HPE Aruba Networking Fabric Composer which provides unified network and security management, automated switch and network configurations, and unified security policy and distributed firewalls across the entire switching fabric.
The CX 10000 series integrates through Rest API, provides flow data to security and network performance tools including Advanced Security ML (XDR), Application Dependency Mapping (ADM), Network Performance Management (NPM), SIEM/SOAR, firewall compliance rules, and identity group mapping tools.
The switch series is based on the HPE Aruba Networking CX Operating System(AOS-CX), a modern, database-driven operating system that automates and simplifies many critical and complex network tasks.

Description

HPE Aruba Networking CX 10000-48Y6C Distributed Services Back-to-Front 6 Fans 2 PSU Switch Bdl. Switch type: Managed, Switch layer: L3. Console port: RJ-45/Micro-USB. MAC address table: 98304 entries, Switching capacity: 3200 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45/Micro-USB
Fiber optic connector	QSFP28, SFP28
QSFP28 ports quantity	6
SFP28 ports quantity	48
Network
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4018
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
10G support	Yes
Virtual LAN features	Port-based VLAN
IGMP snooping	Yes
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Data transmission
MAC address table	98304 entries
Switching capacity	3200 Gbit/s
Throughput	2000 Mpps
Packet buffer memory	32 MB
Static route	Yes
Number of VLANs	4018
Security
IGMP snooping	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP server
Multicast features
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Protocols
Routing protocols	BGP4, OSPF, RIP, RIPng, RIP-2
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Ventilation system	Back-to-front airflow
Number of fans	6 fan(s)
Performance
Processor frequency	2900 MHz
Memory type	RAM / Flash
Internal memory	32768 MB
Flash memory	8192 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	32 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (typical)	550 W
Power consumption (max)	753 W
Number of power supply units	2
Power consumption note	Maximum: 753W Idle: 400W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Latency	<1 µs (without redirect) <5 µs (with redirect)
Performance management	CLI REST API SNMP HPE Aruba Networking Fabric Composer HPE Aruba Networking Switch Multi-Edit Software HPE Aruba Networking Central RJ-45 serial port AMD Pensando PSM Micro USB console
Memory and processor	CPU: Intel Xeon D-1637 6-core processor at 2.90 GHz Switch memory, drive and flash: 32 GB RAM, 64 GB SSD

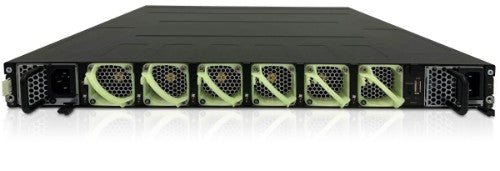

Fan	Field-replaceable, hot-swappable and up to six fans
I/O ports	48 x 25GbE SFP+, 6 x 100Gb QSFP
Ethernet LAN data rates	1000,10000,25000,40000,100000 Mbit/s
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	1.876 BTU/h
Virtual LAN features
Number of VLANs	4018
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Weight & dimensions
Width	17.3" (438.2 mm)
Depth	20.1" (511 mm)
Height	1.75" (44.4 mm)
Weight	21.5 lbs (9.75 kg)
Optical fiber
Fiber optic connector	QSFP28, SFP28
