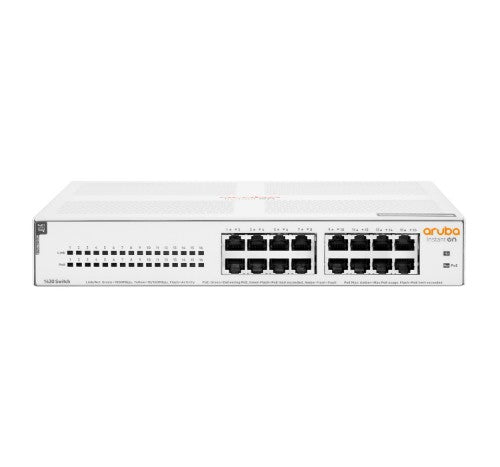

HPE Aruba Networking Aruba Instant On 1430 16G Class4 PoE 124W Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

HPE Aruba Networking Aruba Instant On 1430 16G Class4 PoE 124W, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba Instant On 1430 16G Class4 PoE 124W. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Performance
Packet buffer memory	2 MB
Management features
Switch layer	L2
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Link aggregation	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-sensing	Yes
10G support	No
Data transmission
MAC address table	8192 entries
Switching capacity	32 Gbit/s
Throughput	23.8 Mpps
Latency (10-100 Mbps)	2.7 µs
Latency (1 Gbps)	1.8 µs
Jumbo frames support	Yes
Packet buffer memory	2 MB
Design
Rack mounting	Yes
Product colour	White
Form factor	1U
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	147 W
Number of power supply units	1
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	124 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Weight & dimensions
Width	10.2" (260 mm)
Depth	10.8" (275 mm)
Height	1.73" (44 mm)
Weight	4.61 lbs (2.09 kg)
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
