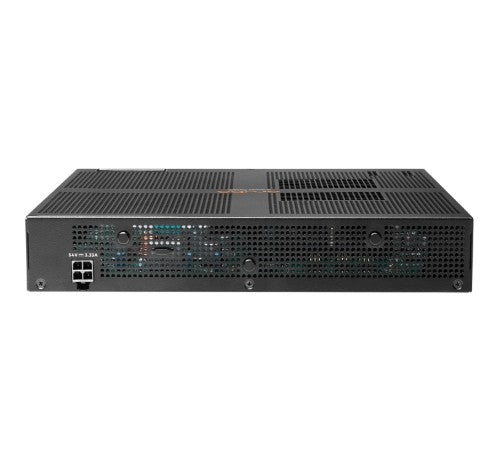

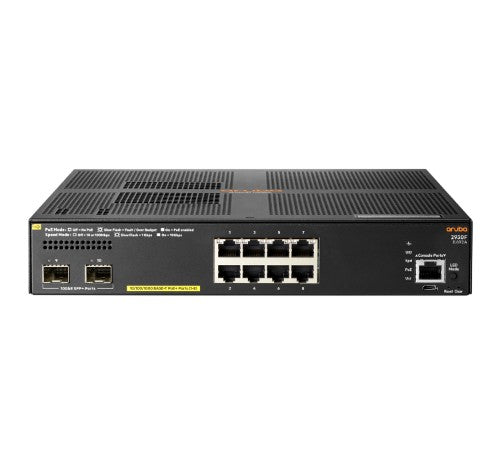

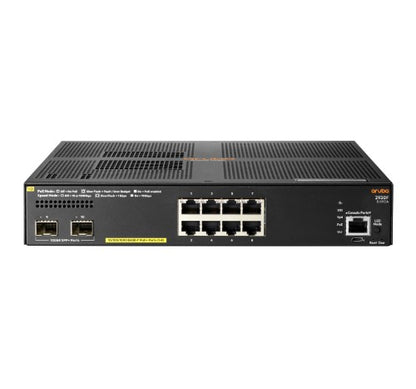

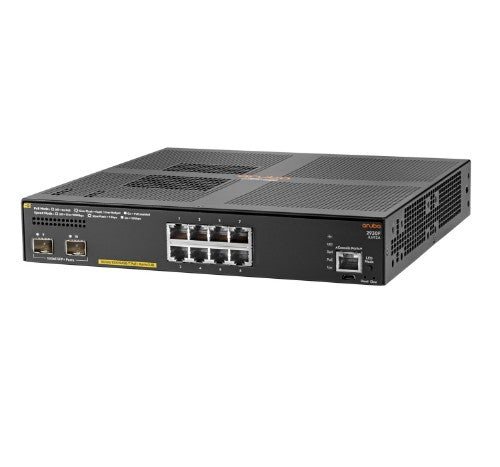

HPE Aruba Networking Aruba 2930F 8G PoE+ 2SFP+ TAA Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray

HPE Aruba Networking Aruba 2930F 8G PoE+ 2SFP+ TAA, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba 2930F 8G PoE+ 2SFP+ TAA. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/Micro-USB. Full duplex. MAC address table: 32768 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Multicast support	Yes
Switch layer	L3
Switch type	Managed
Traffic classification	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Link aggregation	Yes
Flow control support	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Performance
Stackable	Yes
Packet buffer memory	12.38 MB
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	1024 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	2
Console port	RJ-45/Micro-USB
Data transmission
MAC address table	32768 entries
Switching capacity	56 Gbit/s
Throughput	41.7 Mpps
Latency (1 Gbps)	3.8 µs
Latency (10 Gbps)	1.6 µs
Jumbo frames support	Yes
Packet buffer memory	12.38 MB
Security
Authentication	MAC-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Power
Power supply included	Yes
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (max)	155 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	125 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Heat dissipation	58.6 BTU/h
Weight & dimensions
Width	10" (254 mm)
Depth	10" (254 mm)
Height	1.73" (43.9 mm)
Weight	4.41 lbs (2 kg)
