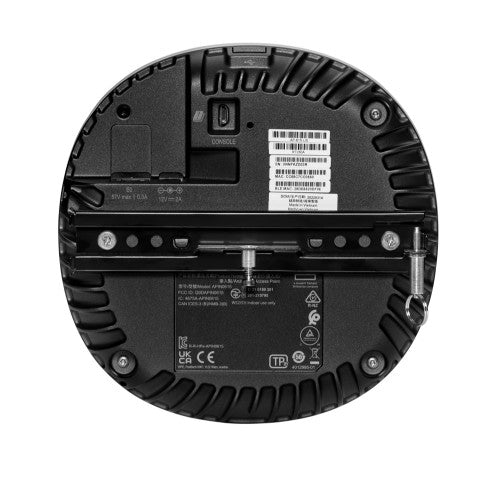

HPE Aruba Networking AP-615 (ID) Dual Radio Tri Band 2x2 802.11ax Wi-Fi 6E Internal Ants Campus AP

HPE Aruba Networking AP-615 (ID) Dual Radio Tri Band 2x2 802.11ax Wi-Fi 6E Internal Ants Campus AP, 2.4 GHz, 5 GHz, 6 GHz, 5000 Mbit/s

Reasons To Buy

More Capacity and Wider Channels with Wi-Fi 6E

HPE Aruba Networking 610 Series Campus Access Points with dual radios deliver up to a maximum combined 3.6 Gbps data rate for higher throughput and faster speeds.
With up to seven 160 MHz channels, the APs increase performance for low-latency, bandwidth-hungry applications.
The 610 series is designed for indoor environments

Cost-effective and Compact 6 GHz Coverage

HPE Aruba Networking 610 Series Campus Access Points equip enterprises with 6 GHz coverage providing up to 1200 MHz additional capacity at an attractive price point.
Software-programable radios can be configured to cover any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz.
It offers low power (802.3af Class 3) and compact form factor for ease of deployment.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise.

Extends Capabilities of Wi-Fi 6 (802.11ax)

HPE Aruba Networking 610 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.
Wi-Fi 6E extends support for Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
Unique AP capabilities include ClientMatch, advanced cellular coexistence (ACC), and intelligent power monitoring (IPM) to customize user experience and energy use.

Indoor Location-Aware Access Points

HPE Aruba Networking 610 Series Campus Access Points include built-in GPS receivers and fine time measurement to automatically and accurately locate themselves.
The access point supports Open Locate, an emerging standard that allows APs to share their location over the air and through cloud-based APIs.

Description

HPE Aruba Networking AP-615 (ID) Dual Radio Tri Band 2x2 802.11ax Wi-Fi 6E Internal Ants Campus AP. 2.4 GHz, 5 GHz, 6 GHz, Ethernet LAN data rates: 5000 Mbit/s

Specifications

Performance
Ethernet LAN data rates	5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Certification	UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10
Features
6 GHz	Yes
Ethernet LAN data rates	5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate
Networking standards	IEEE 802.11ax, IEEE 802.11mc
MIMO	Yes
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
Certification	UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)
Recommended usage	Indoor
Antenna
Antenna direction type	Omni-directional
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certificates
Certification	UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Weight & dimensions
Width	7.91" (201 mm)
Depth	7.2" (183 mm)
Height	2.01" (51 mm)
Weight	25.4 oz (720 g)
Other features
I/O ports	E0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
Weight (imperial)	1.59 lbs
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10
