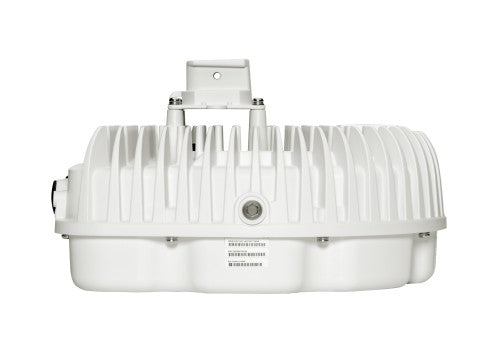

HPE Aruba Networking AP-587 (RW) Dual Radio 4x4 Wi-Fi 6 Internal Directional Outdoor Access Point 2970 Mbit/s White Power over Ethernet (PoE)

Aruba Networking AP-587 (RW) Dual Radio 4x4 Wi-Fi 6 Internal Directional Outdoor Access Point

Description

HPE Aruba Networking 580 Series Outdoor Access Points are our flagship Wi-Fi 6 outdoor APs purpose built to survive the harshest outdoor environments. With Wi-Fi 6 capabilities, high power Bluetooth and 802.15.4/Zigbee radios, and maximum aggregate data rate of 2.97 Gbps, the 580 Series delivers the speed and reliability needed for large enterprise and Industrial IoT deployments. These high-performance Wi-Fi 6 outdoor APs are IP66/67 rated to survive high wind, extreme temperatures, and moisture and can be quickly deployed using Zero Touch Provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 580 Series outdoor APs include a limited lifetime warranty.

What is new supporting point:
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Purpose built to survive in the harshest outdoor environments and extreme temperatures (-40 to +65˚C) with IP66/67 ratings.
Flexible connectivity and power options with support for 5 Gbps multi-gigabit Ethernet ports and 802.3bt Class 6 power or AC power.
Outdoor Wi-Fi 6 access points provide maximum aggregate data rate of 2.97 Gbps.
^[1] Bluetooth and 802.15.4/Zigbee radios with high power to meet Industrial IoT requirements.

Specifications

Performance
Maximum data transfer rate	2970 Mbit/s
Ethernet LAN data rates	1000,5000,10000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Number of users	1024 user(s)
Networking standards	IEEE 802.11ax
Certification	None
MIMO type	Single User MIMO
MIMO	Yes
Features
6 GHz	No
Maximum data transfer rate	2970 Mbit/s
Ethernet LAN data rates	1000,5000,10000 Mbit/s
Spread spectrum method	DSSS, OFDM, OFDMA
2.4 GHz	Yes
5 GHz	Yes
Number of users	1024 user(s)
Networking standards	IEEE 802.11ax
Bluetooth	Yes
Bluetooth version	5.0
MIMO type	Single User MIMO
MIMO	Yes
Trusted Platform Module (TPM)	Yes
Security
Security algorithms	WPA2, WPA3
Ports & interfaces
USB connector type	USB Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (typical)	71 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Pole, Wall
International Protection (IP) code	IP66, IP67
Product colour	White
Certification	None
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	6.6 dBi
Antenna direction type	Directional
Antenna features	Integrated antenna
Technical details
Compliance certificates	Low Voltage Directive (LVD)
Certificates
Certification	None
Compliance certificates	Low Voltage Directive (LVD)
Weight & dimensions
Width	11.9" (302 mm)
Depth	11.8" (300 mm)
Height	6.85" (174 mm)
Weight	9.94 lbs (4.51 kg)
Package width	15.2" (385 mm)
Package depth	10.7" (272 mm)
Package height	17" (433 mm)
Package weight	13.3 lbs (6.03 kg)
Packaging data
Package width	15.2" (385 mm)
Package depth	10.7" (272 mm)
Package height	17" (433 mm)
Package weight	13.3 lbs (6.03 kg)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
