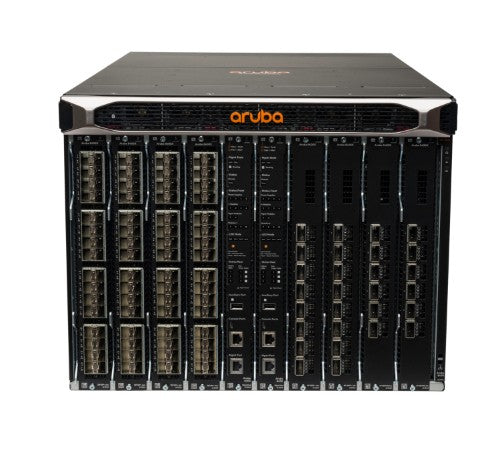

HPE Aruba Networking 8400 1x Mgmt 3x PS 2x 8400X Fabric 1x 32p 10G 1x 8p 40G network switch module 10 Gigabit Ethernet, 40 Gigabit Ethernet

HPE Aruba Networking 8400 1x Mgmt 3x PS 2x 8400X Fabric 1x 32p 10G 1x 8p 40G, 10 Gigabit Ethernet, 40 Gigabit Ethernet, IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,..., QSFP28, SFP, SFP+, 19200 Gbit/s, 8U, 47 - 63 Hz

Description

HPE Aruba Networking 8400 1x Mgmt 3x PS 2x 8400X Fabric 1x 32p 10G 1x 8p 40G. Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Fiber optic connector: QSFP28, SFP, SFP+. Switching capacity: 19200 Gbit/s. Chassis type: 8U. AC input frequency: 47 - 63 Hz, AC input voltage: 90 - 264 V, Power consumption (typical): 2750 W

Specifications

Network
Ethernet interface type	10 Gigabit Ethernet, 40 Gigabit Ethernet
Flow control support	Yes
Networking standards	IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Jumbo frames support	Yes
Link aggregation	Yes
Optical fiber
Fiber optic connector	QSFP28, SFP, SFP+
Data transmission
Switching capacity	19200 Gbit/s
Performance
Quality of Service (QoS) support	Yes
Chassis type	8U
Power
Power consumption (typical)	2750 W
AC input frequency	47 - 63 Hz
AC input voltage	90 - 264 V
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	16.3 lbs (7.4 kg)
Width	17.4" (442 mm)
Depth	26" (660 mm)
Height	13" (330 mm)
Ergonomics
Chassis type	8U
Management features
Quality of Service (QoS) support	Yes
