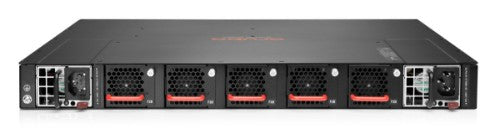

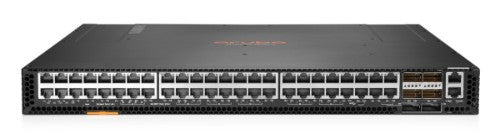

HPE Aruba Networking 8320 48p 1G/10GBASE‑T 6p 40G QSFP+ X472 5 Fans 2 PS Managed L3 10G Ethernet (100/1000/10000) 1U

HPE Aruba Networking 8320 48p 1G/10GBASE‑T 6p 40G QSFP+ X472 5 Fans 2 PS, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U

Description

HPE Aruba Networking 8320 48p 1G/10GBASE‑T 6p 40G QSFP+ X472 5 Fans 2 PS. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 98304 entries, Switching capacity: 2500 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
QSFP+ module slots quantity	6
Console port	RJ-45
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Port mirroring	Yes
IP routing	Yes
10G support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Data transmission
MAC address table	98304 entries
Switching capacity	2500 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	16 MB
Security
Access Control List (ACL)	Yes
Authentication type	RADIUS
DHCP features	DHCP server
Multicast features
Multicast support	Yes
MLD entries	4094
IPv6 multicast entries	4094
IPv4 multicast entries	4094
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Airflow direction	Front-to-back airflow
Number of fans	5 fan(s)
Redundant fans support	Yes
Performance
Internal memory	16384 MB
Flash memory	8192 MB
Built-in processor	Yes
Stackable	Yes
Packet buffer memory	16 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	348 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	18.6" (473 mm)
Depth	17.4" (443 mm)
Height	1.73" (43.9 mm)
