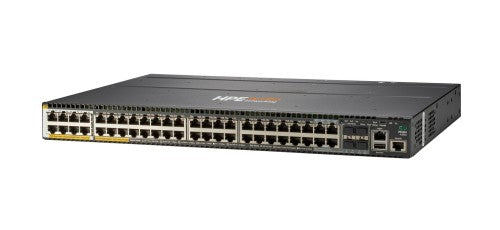

HPE Aruba Networking 2930M 40G 8 Smart Rate PoE+ 1-slot Switch

HPE Aruba Networking 2930M 40G 8 Smart Rate PoE+ 1-slot Switch, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Key Features

• Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and on-premise with Aruba Airwave
• Simplify with Zero Touch Provisioning and cloud-based Aruba Central support
• Scale with modular 10 chassis stacking and up to 1440W PoE
• Modular 10GbE and 40GbE uplinks and HPE Smart Rate multi-gigabit support
• Models with 24 ports of HPE Smart Rate with IEEE 802.3bz
• High Power PoE models deliver up to 60W of PoE per port

Reasons To Buy

High-Performance Layer 3 Access Switches

The HPE Aruba Networking 2930M Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.
Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, Dynamic Segmentation, sFlow, IPv6 with no software licensing required.
Modular stacking (10 chassis) and modular 10 GbE (SFP+) and 40 GbE (QSFP+) uplinks. HPE Smart Rate multi-gigabit Ethernet models support high speed APs over existing cabling and upgradeable power supplies allow your network to quickly scale when more PoE is needed.
Provides optimal configuration automatically when connected to HPE Aruba Networking access points for PoE priority, VLAN configuration, and rogue AP containment.
Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.

Performance and Power at the Edge

The HPE Aruba Networking 2930M Switch Series is designed with a powerful ProVision ASIC, to enable the mobile campus with low latency, increased packet buffering, and adaptive power consumption.
Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
Plug and play with up to 10 chassis stacking allowing automated failover enhances network resiliency and RPS support delivers power redundancy.
Supports hot swappable and redundant PoE power for wireless access points, cameras and phones and can easily scale to 1440W with choice of power supplies. High power PoE models deliver up to 60W of PoE per port.

Security and Quality of Service You Can Rely On

The HPE Aruba Networking 2930M Switch Series includes security and quality of services (QoS) features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, port security, and MAC address lockout.
Dynamic Segmentation provides user and port-based traffic tunneling to an HPE Aruba Networking Mobility Controller or Branch Gateway so that policies can be applied, advanced services can be extended to users and IoT devices, and traffic can be encrypted to protect the network.

Simplified Management For Your Network

The HPE Aruba Networking 2930M Switch Series supports HPE Aruba Networking ClearPass Policy Manager for unified, consistent policy between wired and wireless users, simplifying implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
HPE Aruba Networking Management Software (AirWave) provides an on-premise network management platform for wired and wireless network devices. Cloud-based management with Zero Touch Provisioning supported by HPE Aruba Networking Central.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

Description

HPE Aruba Networking 2930M 40G 8 Smart Rate PoE+ 1-slot Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 40. Switching capacity: 320 Gbit/s. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	40
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	4
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support	Yes
Data transmission
Switching capacity	320 Gbit/s
Throughput	112 Mpps
Latency (1 Gbps)	3.1 µs
Latency (10 Gbps)	3.4 µs
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
Form factor	1U
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	1024 MB
Flash memory	4000 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Fanless	No
Stackable	Yes
Power
AC input voltage	200 - 240 V
Redundant power supply (RPS) support	Yes
Power consumption note	2 power supplies are supported: JL086A PSU (each): 495W JL087A PSU (each): 855W
Power supply note	JL086A X372 54VDC 680W 100-240VAC Power Supply, JL087A X372 54VDC 1050W 110-240VAC Power Supply
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	60 W
Power over Ethernet (PoE) ports quantity	10
Power over Ethernet plus (PoE+) ports quantity	10
Total Power over Ethernet (PoE) budget	1440 W
Other features
Latency	1000 Mb Latency: < 3.1 μs 10 Gbps Latency: < 3.4 μs
Performance management	HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Memory and processor	Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5 MB Ingress, 7.785 Egress 4 GB eMMC
Weight (imperial)	9.81 lbs
I/O ports	(36) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (8) RJ-45 1/2.5/5GBASE-T and 10GBASE-T copper PoE+ ports (1) uplink module slot, (1) stacking module slot
Dimensions (W x D x H) (imperial)	1.73 x 17.42 x 12.77"
Ethernet LAN data rates	10,100,1000 Mbit/s
Operational conditions
Heat dissipation	145 BTU/h
Weight & dimensions
Width	1.73" (43.9 mm)
Depth	17.4" (442.5 mm)
Height	12.8" (324.3 mm)
Weight	9.81 lbs (4.45 kg)
