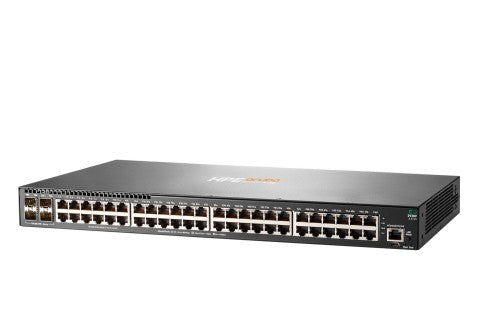

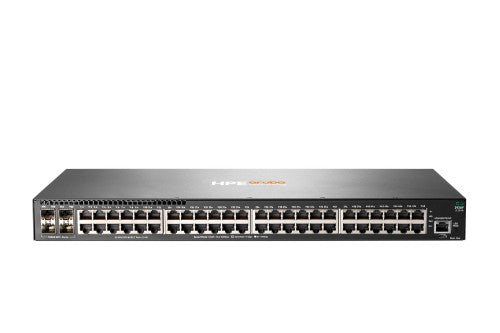

HPE Aruba Networking 2930F 48G 4SFP+ Switch

HPE Aruba Networking 2930F 48G 4SFP+ Switch, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Reasons To Buy

High-performance Access Layer Switches

The HPE Aruba Networking 2930F Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.
Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
Up to 8-member stacking with HPE Aruba Networking Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
Provides optimal configuration automatically when connected to HPE Aruba Networking access points for PoE priority, VLAN configuration, and rogue AP containment.
Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.

Performance and Power at the Edge

The HPE Aruba Networking 2930F Switch Series is designed with a powerful ProVision ASIC to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
HPE Aruba Networking Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.
Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones, depending on model.

Security and Quality of Service You Can Rely on

The HPE Aruba Networking 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Simplified Management for Your Network

The HPE Aruba Networking 2930F Switch Series supports HPE Aruba Networking ClearPass Policy Manager for unified, consistent policy between wired and wireless users, simplifying implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
HPE Aruba Networking Management Software (AirWave) provides an on-premise network management platform for wired and wireless network devices. Cloud-based management with Zero Touch Provisioning (ZTP) supported by HPE Aruba Networking Central.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

Description

HPE Aruba Networking 2930F 48G 4SFP+ Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/micro-USB. MAC address table: 32768 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Console port	RJ-45/micro-USB
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Link aggregation	Yes
IP routing	Yes
Auto-sensing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Half duplex	Yes
Virtual LAN features	Private VLAN
Data transmission
MAC address table	32768 entries
Switching capacity	176 Gbit/s
Throughput	112 Mpps
Latency (1 Gbps)	3.8 µs
Latency (10 Gbps)	1.6 µs
Packet buffer memory	12.38 MB
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1, SNMPv2, SNMPv3, Telnet, RMON1, FTP
Routing protocols	RIPng, VRRP
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Airflow direction	Side-to-side airflow
Performance
Virtual stacking (units)	8
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	1024 MB
Flash memory	4096 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Stackable	Yes
Packet buffer memory	12.38 MB
Power
Power supply included	Yes
AC input voltage	200 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	46.6 W
Power consumption note	46.6W (maximum)
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Latency	1000 Mb Latency: < 3.8 μs 10 Gbps Latency: < 1.6 μs
Performance management	HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central network management HPE IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Memory and processor	Dual Core Arm Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC
Weight (imperial)	6.83 lbs
I/O ports	48x RJ-45 autosensing 10/100/1000 ports 4x SFP+ 1/10GbE ports PHY-less
Dimensions (W x D x H) (imperial)	1.73 x 17.42 x 9.7"
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Heat dissipation	157.2 BTU/h
Virtual LAN features
VLAN support	Yes
Virtual LAN features	Private VLAN
Weight & dimensions
Width	1.73" (43.9 mm)
Depth	17.4" (442.5 mm)
Height	9.7" (246.3 mm)
Weight	6.83 lbs (3.1 kg)
IPv4 & IPv6 features
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
