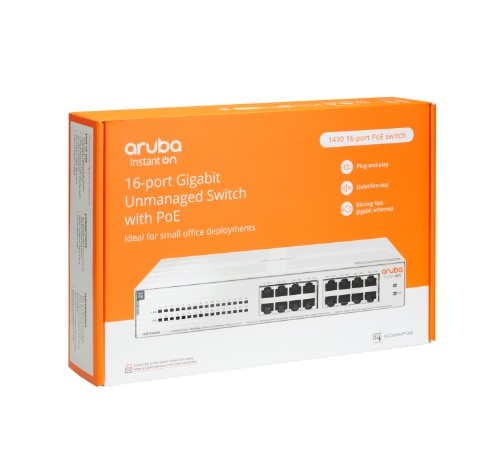

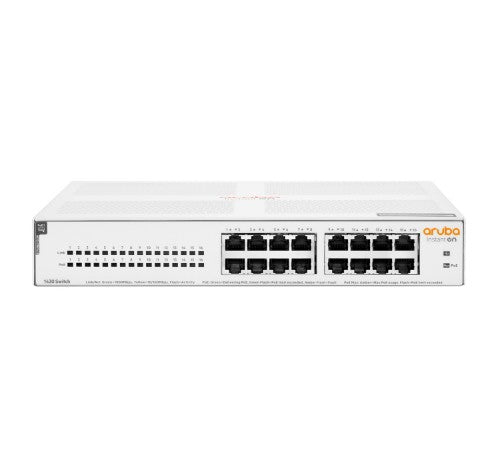

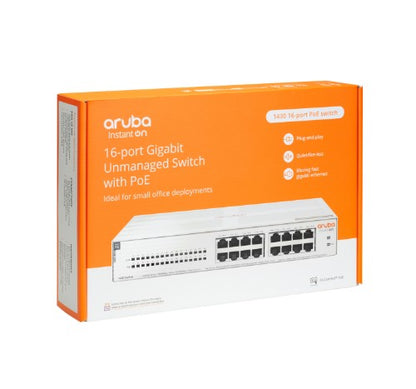

HPE Aruba Instant On 1430 16G Class4 PoE 124W Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

HPE Aruba Instant On 1430 16G Class4 PoE 124W, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting

Description

HPE Aruba Instant On 1430 16G Class4 PoE 124W. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting

Specifications

Management features
Switch layer	L2
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Flow control support	Yes
Auto-sensing	Yes
10G support	No
Half duplex	Yes
Data transmission
MAC address table	8192 entries
Switching capacity	32 Gbit/s
Throughput	23.8 Mpps
Latency (10-100 Mbps)	2.7 µs
Latency (1 Gbps)	1.8 µs
Packet buffer memory	2 MB
Design
Rack mounting	Yes
Stackable	No
Performance
Memory type	EEPROM
Stackable	No
Packet buffer memory	2 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	147 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	124 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Width	10.8" (275 mm)
Depth	10.2" (260 mm)
Height	1.73" (44 mm)
Weight	4.61 lbs (2.09 kg)
