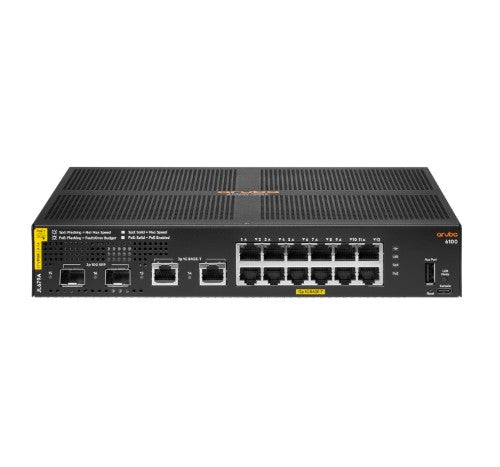

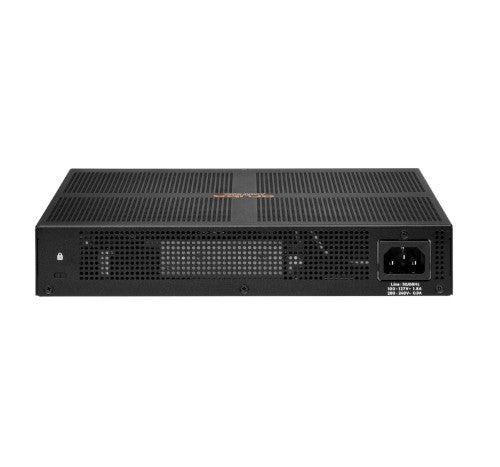

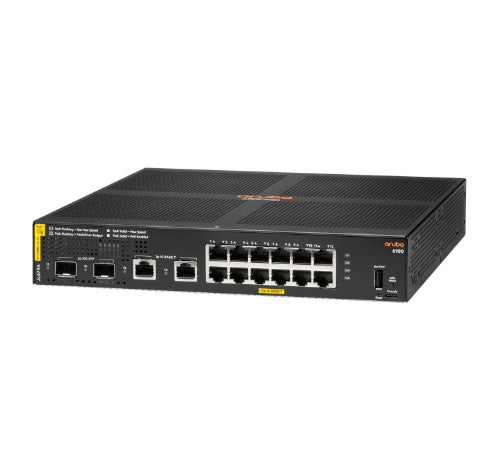

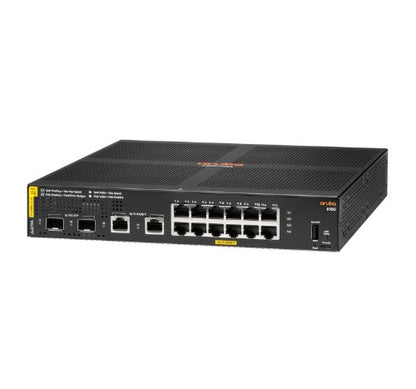

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, Wall mountable

Description

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12. MAC address table: 8192 entries, Switching capacity: 68 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: 1U

Specifications

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	2
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Number of VLANs	4094
VLAN support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Flow control support	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	8192 entries
Switching capacity	68 Gbit/s
Throughput	45.1 Mpps
Latency (1 Gbps)	2.3 µs
Latency (10 Gbps)	2.6 µs
Packet buffer memory	12.38 MB
Number of VLANs	4094
Security
Authentication	MAC-based authentication, Web-based authentication
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS, TACACS+
DHCP features	DHCP relay, DHCP snooping
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMPv1, SNMPv2c, SNMPv3
Design
Rack mounting	Yes
Stackable	No
Form factor	1U
Wall mountable	Yes
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16384 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Stackable	No
Packet buffer memory	12.38 MB
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	170 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	139 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	15 - 95%
Storage relative humidity (H-H)	15 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 181102.4" (0 - 4600 m)
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Weight & dimensions
Width	10" (254 mm)
Depth	10" (255 mm)
Height	1.73" (43.9 mm)
Weight	6.17 lbs (2.8 kg)
