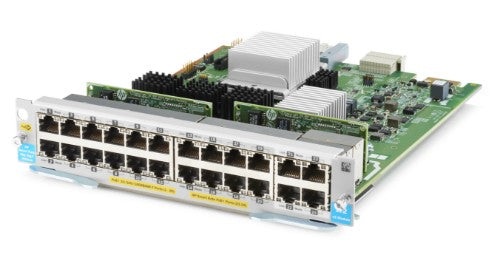

HPE Aruba 20-port 10/100/1000BASE-T PoE+ / 4-port 1/2.5/5/10GBASE-T PoE+ MACsec v3 zl2 network switch module

HPE Aruba 20-port 10/100/1000BASE-T PoE+ / 4-port 1/2.5/5/10GBASE-T PoE+ MACsec v3 zl2, 10,100,1000,10000 Mbit/s, 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T, 10.3" (261.6 mm), 8.13" (206.5 mm), 1.75" (44.5 mm), 33.2 oz (940 g)

Description

HPE Aruba 20-port 10/100/1000BASE-T PoE+ / 4-port 1/2.5/5/10GBASE-T PoE+ MACsec v3 zl2. Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T. Width: 10.3" (261.6 mm), Depth: 8.13" (206.5 mm), Height: 1.75" (44.5 mm)

Specifications

Network
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Ports & interfaces
Ethernet LAN (RJ-45) ports	24
Power
Power over Ethernet (PoE)	Yes
Weight & dimensions
Weight	33.2 oz (940 g)
Width	10.3" (261.6 mm)
Depth	8.13" (206.5 mm)
Height	1.75" (44.5 mm)
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
