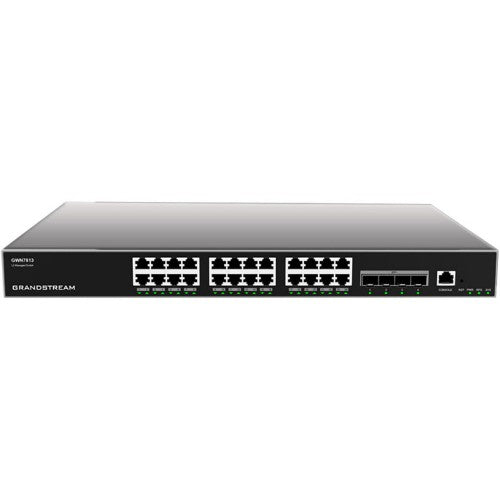

Grandstream Networks GWN7813 network switch Managed L3 Gigabit Ethernet (10/100/1000) Gray

Enterprise Layer 3 Managed Network Switches, 24 Gigabit Ethernet Ports

Key Features

• 8/16/24 Gigabit Ethernet ports and 2/4 10Gigabit SFP+ ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models, Ports 1-8 on the GWN7813P support PoE++
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and
• on-premise network management platform
• Built-in QoS allows for prioritization of network traffic
• Contact Sales

Description

The GWN7810 series are Layer 3 managed network switches that allow enterprises to build scalable, secure, and high-performance business networks that are fully manageable.

GWN.Cloud
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GWN Manager
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.

Specifications

Network
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Access Control List (ACL) IPv6 entries	2000
Access Control List (ACL) IPv4 entries	2000
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs	4000
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
10G support	Yes
Virtual LAN features	Tagged VLAN
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Data transmission
Number of VLANs	4000
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Store-and-forward	Yes
Packet buffer memory	12 MB
Static route	Yes
Forwarding rate	95.232 Mpps
Throughput	64 Gbit/s
IPv4 & IPv6 features
Access Control List (ACL) IPv6 entries	2000
Access Control List (ACL) IPv4 entries	2000
Performance
Packet buffer memory	12 MB
Management features
Switch layer	L3
Switch type	Managed
Traffic shaping	Yes
ARP inspection	Yes
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Security algorithms	802.1x RADIUS, SNMP
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Queue scheduling algorithms	SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)
Password protection	Yes
Authentication type	AAA, RADIUS, TACACS+
Access Control List (ACL) IPv6 entries	2000
Access Control List (ACL) IPv4 entries	2000
DHCP features	DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
Design
Rack mounting	Yes
Product colour	Gray
LED indicators	Yes
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Power
Power consumption (typical)	60 W
Redundant power supply (RPS) support	Yes
Input voltage	12 V
Input current	5 A
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	7.87" (200 mm)
Depth	17.3" (440 mm)
Height	1.73" (44 mm)
Weight	6.48 lbs (2.94 kg)
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Other features
Input voltage	12 V
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
