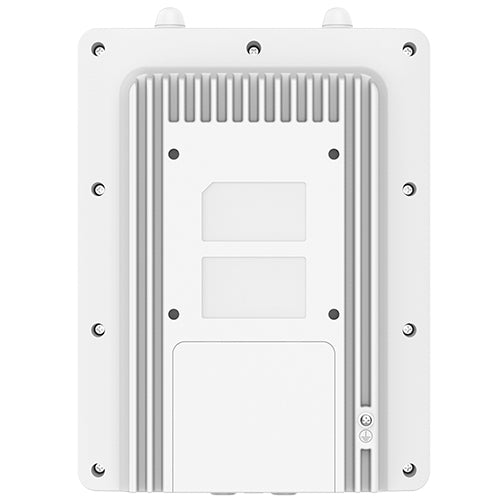

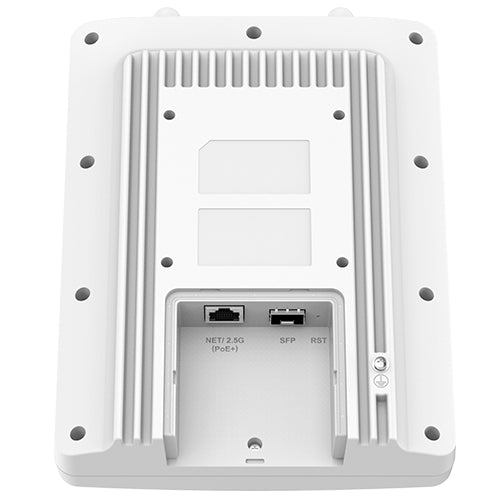

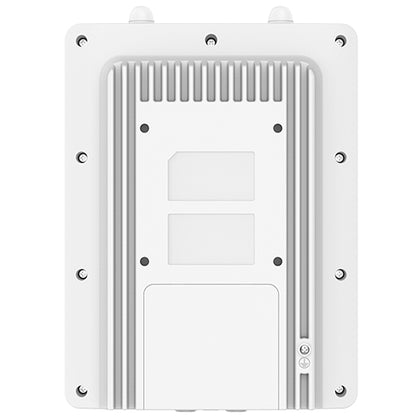

Grandstream Networks GWN7670LR wireless access point 3600 Mbit/s White Power over Ethernet (PoE)

2.4/5 GHz, Wi-Fi 7, Bluetooth 5.3, 1x WAN/LAN, 1x SFP, PoE+

Key Features

• 3.6Gbps aggregate wireless throughput, 2.5Gigabit Ethernet Port, and 2.5Gigabit SFP Port
• Integrated Wi-Fi 7 and Dual band 2x2:2 MIMO with DL/UL OFDMA technology
• Up to 350-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Description

The GWN7670LR is a long-range Wi-Fi 7 access point, ideal for medium-to-large businesses that need to provide long-range coverage.

State-of-the-Art Wi-Fi 7 Connectivity
The GWN7670LR is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.

Ideal for Environments with Medium User Density
The GWN7670LR provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.

Twice as Fast as Wi-Fi 6
Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.

Easy and Free Management
Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

Free Network Management Options
GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.

Specifications

Performance
Maximum data transfer rate	3600 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Web-based management	Yes
VLAN support	Yes
Reset button	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3at
MIMO	Yes
Wi-Fi roaming	Yes
Band steering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	No
Maximum data transfer rate	3600 Mbit/s
Ethernet LAN data rates	2500 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3at
Bluetooth	Yes
Bluetooth version	5.3
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
MIMO	Yes
Wi-Fi roaming	Yes
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	2882 Mbit/s
Virtual LAN features	MAC address-based VLAN, SSID-based VLAN assignment
Bluetooth Low Energy (BLE)	Yes
BeamForming	Yes
Number of simultaneously connected devices (max)	256
Wireless meshing	Yes
Security
Security algorithms	WPA, WPA2, WPA2-PSK, WPA3, WPA3-SAE
Number of SSID supported	32
MAC address filtering	Yes
Wireless Intrusion Detection System (WIDS)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Network address translation (NAT)	Yes
Protocols
Management protocols	TR-069, SNMP
DHCP server	Yes
DHCP client	Yes
Management features
Web-based management	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	15.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Design
Reset button	Yes
Placement	Pole, Wall
LED indicators	Yes
Product colour	White
Antenna
Antenna type	Internal & external
Antenna gain level (max)	13.5 dBi
Antenna direction type	Directional
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM
Software
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
Weight & dimensions
Width	8.79" (223.2 mm)
Depth	2.12" (53.9 mm)
Height	6.69" (169.9 mm)
Weight	2.65 lbs (1.2 kg)
Package weight	5.95 lbs (2.7 kg)
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Package weight	5.95 lbs (2.7 kg)
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Logistics data
Quantity per pack	1 pc(s)
