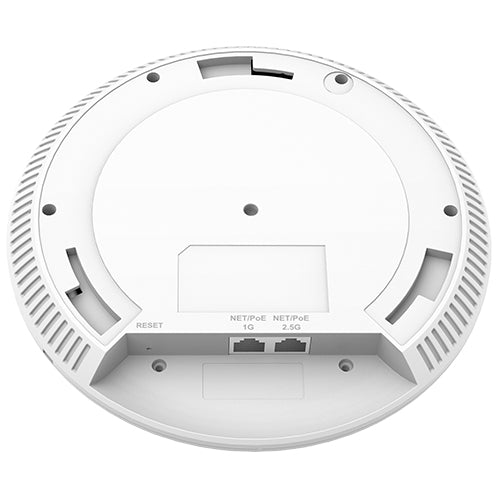

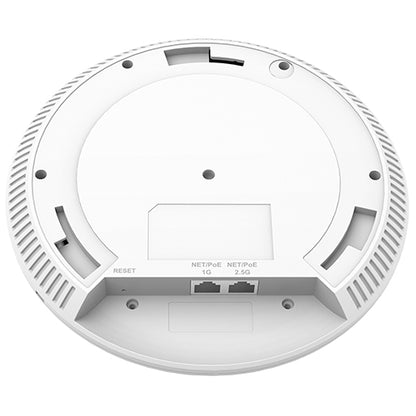

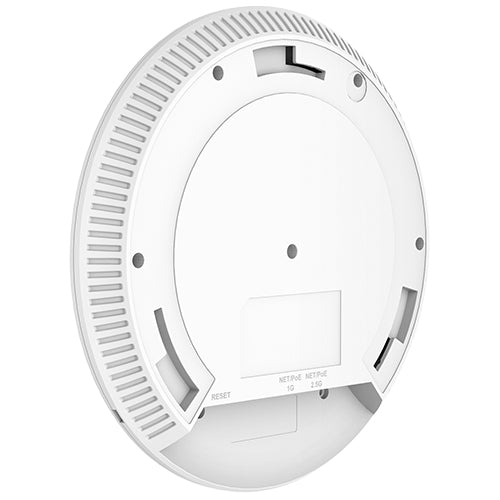

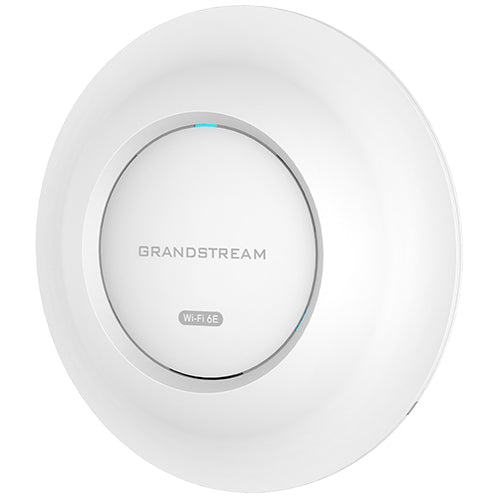

Grandstream Networks GWN7665 wireless access point 5400 Mbit/s White Power over Ethernet (PoE)

GWN 802.11ax Tri-Band Wi-Fi 6E Access Point

Key Features

• 5.4Gbps aggregate wireless throughput, 3.5 Gigabit wireline ports
• Tri-Band 2x2:2 MU-MIMO with DL/UL OFDMA technology
• Up to 175-meter coverage range
• Support 384 concurrent Wi-Fi client devices
• Built-in Bluetooth BLE 5.2
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE or PoE+
• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Description

The GWN7665 is a powerful, enterprise-grade Wi-Fi 6E access point for business-grade wireless network deployments with medium-to-high user density.

Specifications

Performance
Maximum data transfer rate	5400 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Web-based management	Yes
Transmitting power	26 dBmW
Reset button	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Certification	FCC, CE, RCM, IC,UKCA
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate	5400 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Transmitting power	26 dBmW
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
MIMO type	Multi User MIMO
MIMO	Yes
Security
Security algorithms	WEP, WPA, WPA2-PSK, WPA3
Number of SSID supported	32
Protocols
Supported network protocols	IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Management features
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Power
Power over Ethernet (PoE)	Yes
Design
Reset button	Yes
Placement	Ceiling, Wall
LED indicators	Yes
Product colour	White
Cable lock slot	Yes
Certification	FCC, CE, RCM, IC,UKCA
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	7
Certificates
Certification	FCC, CE, RCM, IC,UKCA
Weight & dimensions
Width	8.08" (205.3 mm)
Depth	8.08" (205.3 mm)
Height	1.81" (45.9 mm)
Weight	27 oz (765 g)
Package width	10.2" (258 mm)
Package depth	9.72" (247 mm)
Package height	3.39" (86 mm)
Package weight	2.45 lbs (1.11 kg)
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Package width	10.2" (258 mm)
Package depth	9.72" (247 mm)
Package height	3.39" (86 mm)
Package weight	2.45 lbs (1.11 kg)
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 60 °C
Logistics data
Quantity per pack	1 pc(s)
