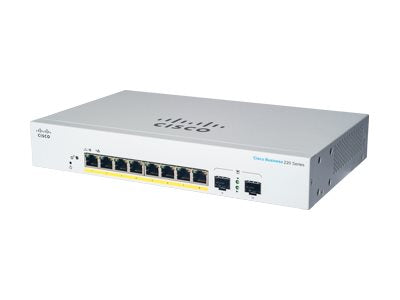

Cisco CBS220-8P-E-2G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

8 Gigabit Ethernet, 2 Gigabit Ethernet SFP, Manageable 2L, PoE 65W, NA

Description

Product overview
From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be priorities, while ongoing management and operations add additional complexity that takes time and resources.

Cisco Business is a portfolio of affordable wireless access points, switches, and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring, and lifecycle management of the network.

Cisco Business 220 Series Smart Switches
The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Reset button	Yes
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Configuring Location Settings (CLI)	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Network
Networking standards	IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs	256
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
IGMP entries	256
Data transmission
MAC address table	8192 entries
Switching capacity	20 Gbit/s
Jumbo frames	9216
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	14.88 Mpps
Number of VLANs	256
Number of multicast groups filtered	256
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Access Control List (ACL) rules	512
SSH/SSL support	Yes
Security algorithms	SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
IGMP entries	256
DHCP features	DHCP client
Multicast features
Number of multicast groups filtered	256
Multicast support	Yes
Protocols
Management protocols	SNMP
GARP VLAN Registration Protocol (GVRP)	Yes
Design
Rack mounting	Yes
Product colour	White
Reset button	Yes
LED indicators	Activity, Link, Speed, System
Performance
Internal memory	256 MB
Flash memory	64 MB
Firmware upgradeable	Yes
Packet buffer memory	4.1 MB
Harmonized System (HS) code	85176990
Power
Power supply included	Yes
Power consumption (typical)	5.7 W
Power consumption (max)	81.6 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	65 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Heat dissipation	273.43 BTU/h
Virtual LAN features
Number of VLANs	256
VLAN support	Yes
Weight & dimensions
Width	11" (279 mm)
Depth	6.69" (170 mm)
Height	1.73" (44 mm)
Weight	2.6 lbs (1.18 kg)
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Logistics data
Harmonized System (HS) code	85176990
