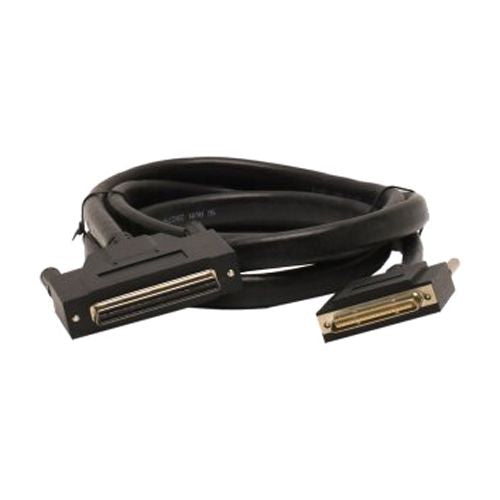

Cisco CABLE-16TDM-C-L3= patch panel accessory

16-port cable for TDM CEM Interface Module, no redundancy, 85 inches in length

Description

One end of the cable has a 68-pin connector that plugs into the T1/E1 interface module and the other end of the cable with a 68-pin connector is connected to a RJ48, AMP64 or a DIN patch panel. Use the thumbscrews on either side of the connector to secure the cable to the interface. For information about the pinout of the cable connecting the T1/E1 interface to the rear of the patch panel, see T1/E1 ports, see the T1/E1 Port Pinout.

Patch Panel Cables

The patch panel cable connects the interface modules with the patch panel. Each cable connects one VHDCI connector on the interface module to the connector on the patch panel. A set of three cables is required to connect one interface module to one 48-port patch panel. The following table shows details of the patch panel cables:

Specifications

Features
Ports quantity	16
Mounting	Rack mounting
Product colour	Black
Cable connection	68-pin T1/E1 - 68-pin RJ48, AMP64, DIN
Weight & dimensions
Width	866.1" (22000 mm)
Technical details
Ports quantity	16
Mounting	Rack mounting
Product colour	Black
Cable connection	68-pin T1/E1 - 68-pin RJ48, AMP64, DIN
